Current price of PM32-220M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | PM32 |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Type: | Wirewound |
Material - Core: | Ferrite |
Inductance: | 22 µH |
Tolerance: | ±20% |
Current Rating (Amps): | 520 mA |
Current - Saturation (Isat): | 650mA |
Shielding: | Unshielded |
DC Resistance (DCR): | 660mOhm Max |
Q @ Freq: | 23 @ 2.52MHz |
Frequency - Self Resonant: | 22MHz |
Ratings: | - |
Operating Temperature: | -40°C ~ 125°C |
Inductance Frequency - Test: | 1 kHz |
Features: | - |
Mounting Type: | Surface Mount |
Package / Case: | Nonstandard |
Supplier Device Package: | - |
Size / Dimension: | 0.118" L x 0.110" W (3.00mm x 2.80mm) |
Height - Seated (Max): | 0.110" (2.80mm) |

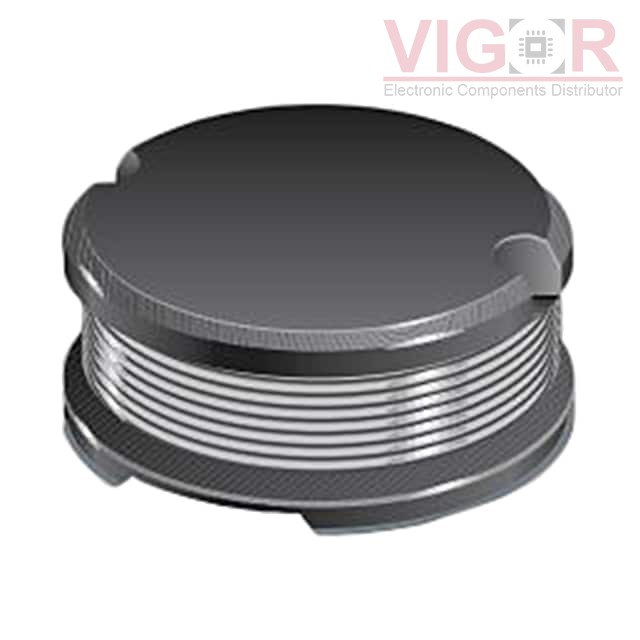

FIXED IND 22UH 520MA 660MOHM SMD
