SDR0603-120ML

SDR0603-120ML

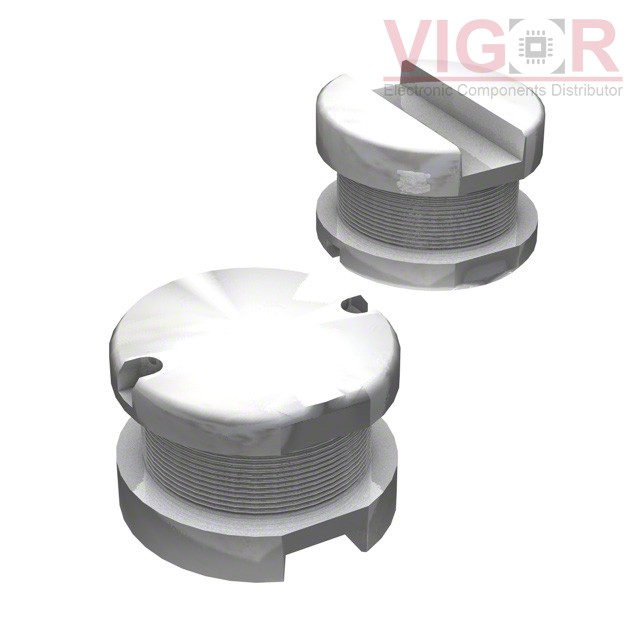

Image is for reference,
please contact us to get the real picture

Part No :

SDR0603-120ML

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 12UH 1.02A 160MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
SDR0603-120ML PDF
Availability
0 pieces
Unit Price
$0.24310

Current price of SDR0603-120ML is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0603-120ML Specifications
Type Description
Series:SDR0603
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:12 µH
Tolerance:±20%
Current Rating (Amps):1.02 A
Current - Saturation (Isat):1.3A
Shielding:Unshielded
DC Resistance (DCR):160mOhm Max
Q @ Freq:23 @ 2.52MHz
Frequency - Self Resonant:30MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.154" (3.90mm)
