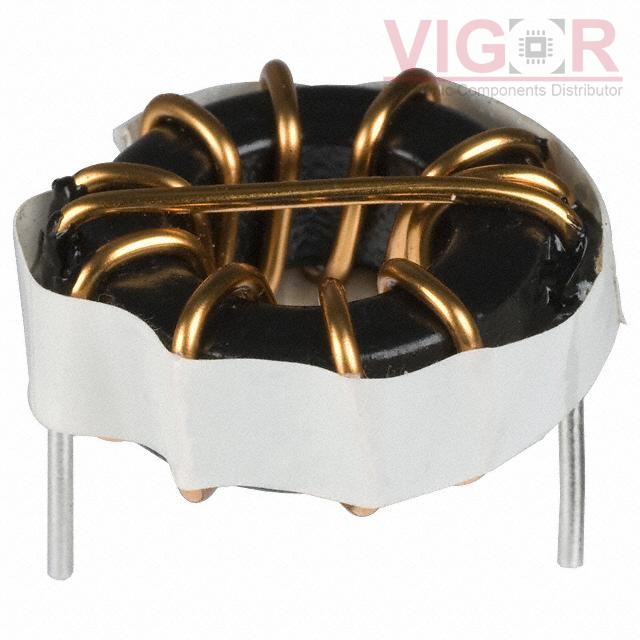

2200LL-8R2-H-RC

2200LL-8R2-H-RC

Image is for reference,
please contact us to get the real picture

Part No :

2200LL-8R2-H-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 8.2UH 15.1A 5 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
2200LL-8R2-H-RC PDF
Availability
0 pieces
Unit Price
$2.65952

Current price of 2200LL-8R2-H-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2200LL-8R2-H-RC Specifications
Type Description
Series:2200LL
Package:Bulk
Part Status:Active
Type:Toroidal
Material - Core:Sendust
Inductance:8.2 µH
Tolerance:±20%
Current Rating (Amps):15.1 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):5mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Horizontal (Open)
Supplier Device Package:-
Size / Dimension:1.100" Dia (27.94mm)
Height - Seated (Max):0.550" (13.97mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 5022R-474H

5022R-474H

FIXED IND 470UH 143MA 17.9 OHM

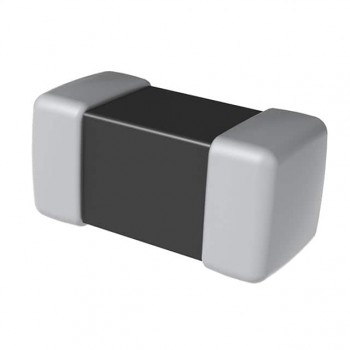

HOT L0805CR47MDMIT

L0805CR47MDMIT

FIXED IND 470NH 1.2A 80 MOHM SMD

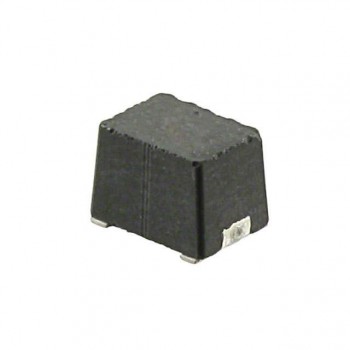

HOT ISC1812RQR15K
