CDR6D23MNNP-560NC

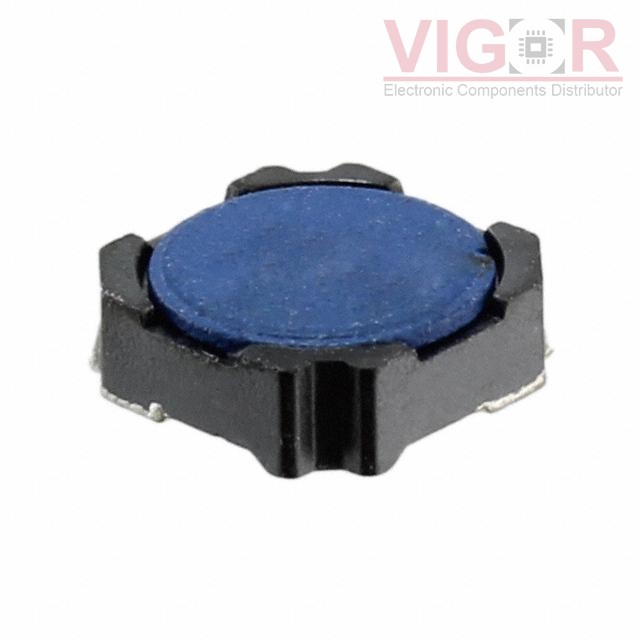

Image is for reference,
please contact us to get the real picture

Part No :: CDR6D23MNNP-560NC

Manufacturer: Sumida Corporation

Description: FIXED IND 56UH 510MA 481.2 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: CDR6D23MNNP-560NC PDF

Availability: 0 pieces

Unit Price: ~~$0.57600~~

Current price of CDR6D23MNNP-560NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDR6D23MNNP-560NC Specifications

Type	Description
Series:	CDR6D23MN
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	56 µH
Tolerance:	±25%
Current Rating (Amps):	510 mA
Current - Saturation (Isat):	750mA
Shielding:	Shielded
DC Resistance (DCR):	481.2mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max):	0.098" (2.50mm)
