SDR1005-331KL

SDR1005-331KL

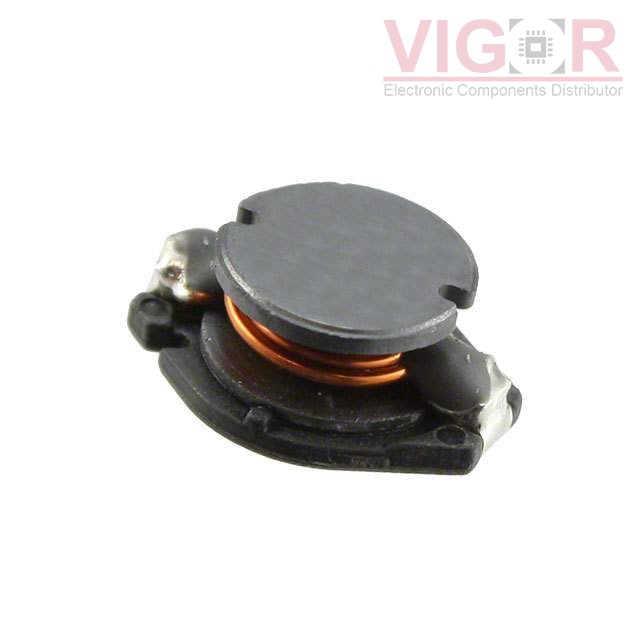

Image is for reference,
please contact us to get the real picture

Part No :

SDR1005-331KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 330UH 550MA 1.15OHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
SDR1005-331KL PDF
Availability
656 pieces
Unit Price
$0.84000

Current price of SDR1005-331KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1005-331KL Specifications
Type Description
Series:SDR1005
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:330 µH
Tolerance:±10%
Current Rating (Amps):550 mA
Current - Saturation (Isat):600mA
Shielding:Unshielded
DC Resistance (DCR):1.15Ohm Max
Q @ Freq:56 @ 70kHz
Frequency - Self Resonant:4MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):0.197" (5.00mm)
