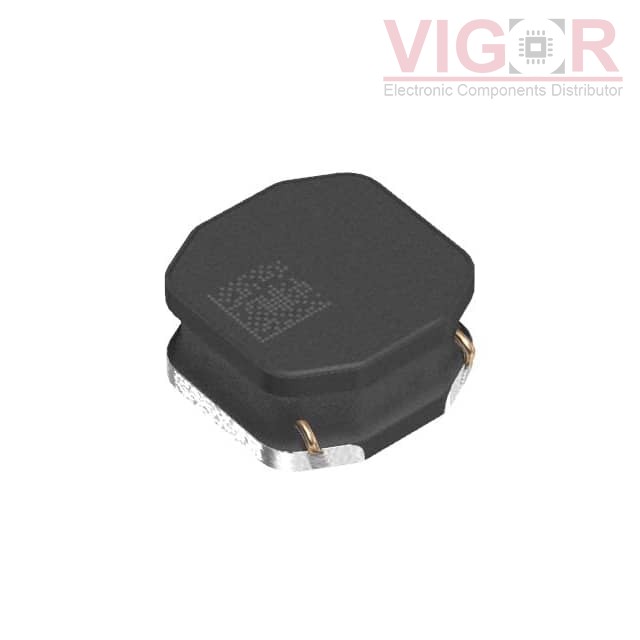

VLS3015CX-220M-H

VLS3015CX-220M-H

Image is for reference,
please contact us to get the real picture

Part No :

VLS3015CX-220M-H

Manufacturer
TDK Corporation
Description
INDUCTORS FOR POWER CIRCUITS, AU
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
VLS3015CX-220M-H PDF
Availability
3767 pieces
Unit Price
$0.47000

Current price of VLS3015CX-220M-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VLS3015CX-220M-H Specifications
Type Description
Series:VLS-CX-H
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):730 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):660mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):0.059" (1.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0819-94H

0819-94H

FIXED IND 820UH 25.5MA 72 OHM TH
HOT MLG0603S3N0BT000

MLG0603S3N0BT000

FIXED IND 3NH 300MA 300 MOHM SMD

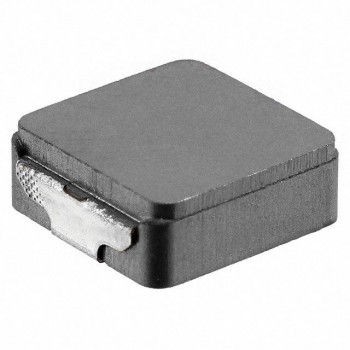

HOT IHLP4040DZER1R0M5A
