SDR0302-121KL

SDR0302-121KL

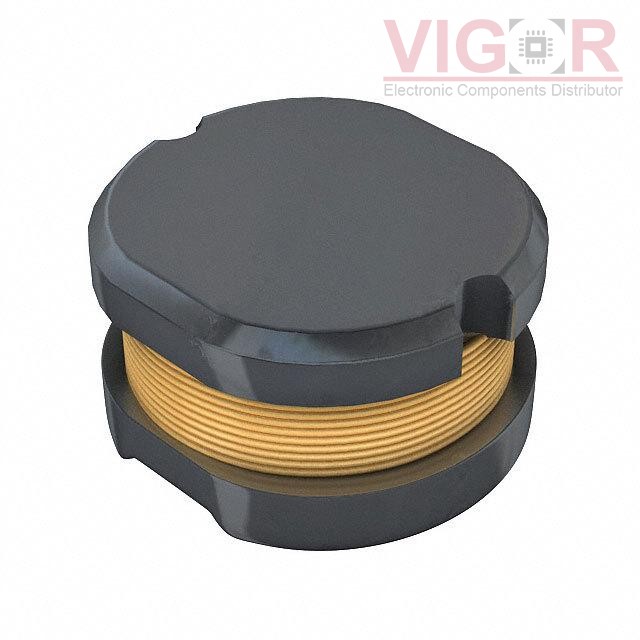

Image is for reference,
please contact us to get the real picture

Part No :

SDR0302-121KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 120UH 220MA 3.2OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
SDR0302-121KL PDF
Availability
2337 pieces
Unit Price
$0.57000

Current price of SDR0302-121KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0302-121KL Specifications
Type Description
Series:SDR0302
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:120 µH
Tolerance:±10%
Current Rating (Amps):220 mA
Current - Saturation (Isat):250mA
Shielding:Unshielded
DC Resistance (DCR):3.2Ohm Max
Q @ Freq:40 @ 796kHz
Frequency - Self Resonant:10MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.118" L x 0.110" W (3.00mm x 2.80mm)
Height - Seated (Max):0.110" (2.80mm)
