S14100034

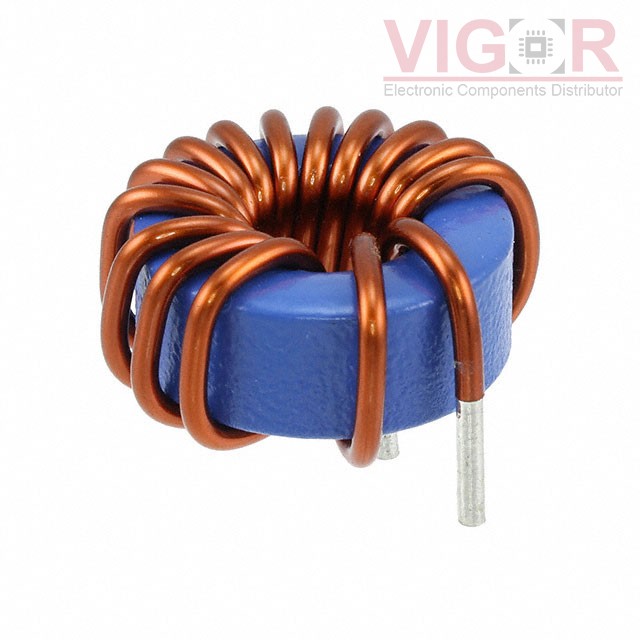

Image is for reference,
please contact us to get the real picture

Part No :: S14100034

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 18A 4.5 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: S14100034 PDF

Availability: 15 pieces

Unit Price: ~~$4.18000~~

Current price of S14100034 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S14100034 Specifications

Type	Description
Series:	WE-FI
Package:	Tray
Part Status:	Active
Type:	Toroidal
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	18 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	4.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Horizontal (Open)
Supplier Device Package:	-
Size / Dimension:	1.378" Dia (35.00mm)
Height - Seated (Max):	0.689" (17.50mm)
