LQB15NNR56J10D

LQB15NNR56J10D

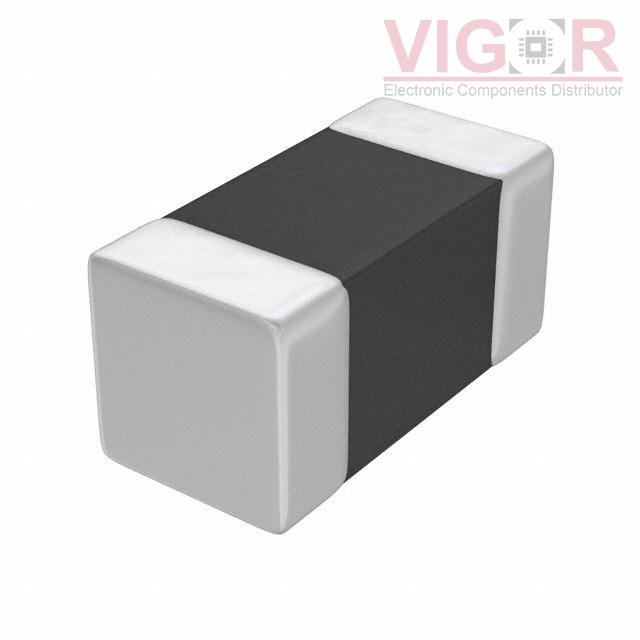

Image is for reference,
please contact us to get the real picture

Part No :

LQB15NNR56J10D

Manufacturer
TOKO / Murata
Description
FIXED IND 560NH 300MA 912.5 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
LQB15NNR56J10D PDF
Availability
3397 pieces
Unit Price
$0.15000

Current price of LQB15NNR56J10D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQB15NNR56J10D Specifications
Type Description
Series:LQB15
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±5%
Current Rating (Amps):300 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):912.5mOhm Max
Q @ Freq:10 @ 25MHz
Frequency - Self Resonant:80MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.022" (0.55mm)
