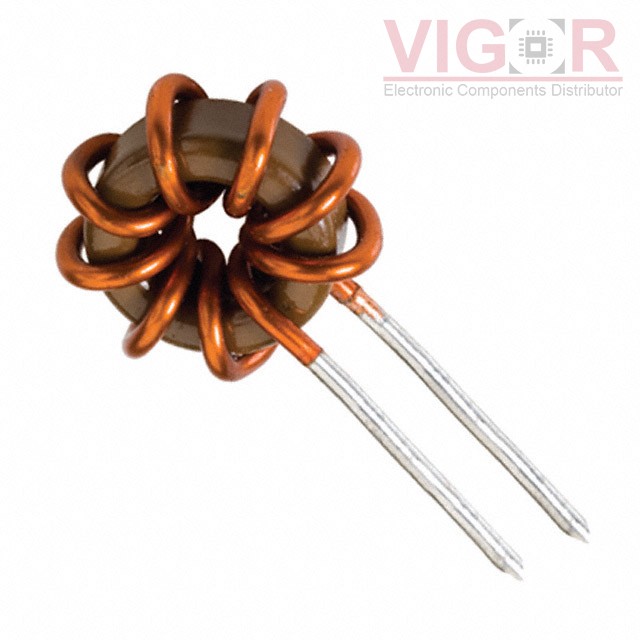

HTPT66R-223K

Image is for reference,
please contact us to get the real picture

Part No :: HTPT66R-223K

Manufacturer: API Delevan

Description: FIXED IND 22UH 4A 36 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: HTPT66R-223K PDF

Availability: 0 pieces

Unit Price: ~~$8.70300~~

Current price of HTPT66R-223K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HTPT66R-223K Specifications

Type	Description
Series:	HTPT66R
Package:	Bulk
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	4 A
Current - Saturation (Isat):	4A
Shielding:	Shielded
DC Resistance (DCR):	36mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 200°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical (Open)
Supplier Device Package:	-
Size / Dimension:	0.660" Dia x 0.360" W (16.76mm x 9.14mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

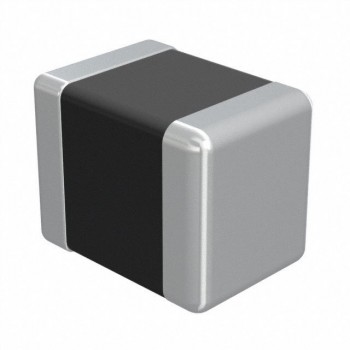

CB2518T220M

FIXED IND 22UH 580MA 650 MOHM

HOT

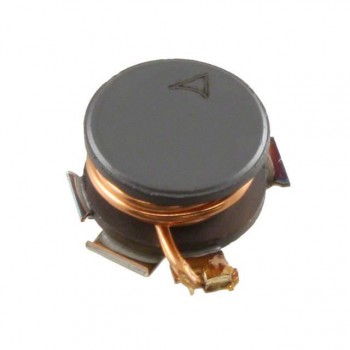

B82464A4103M000
