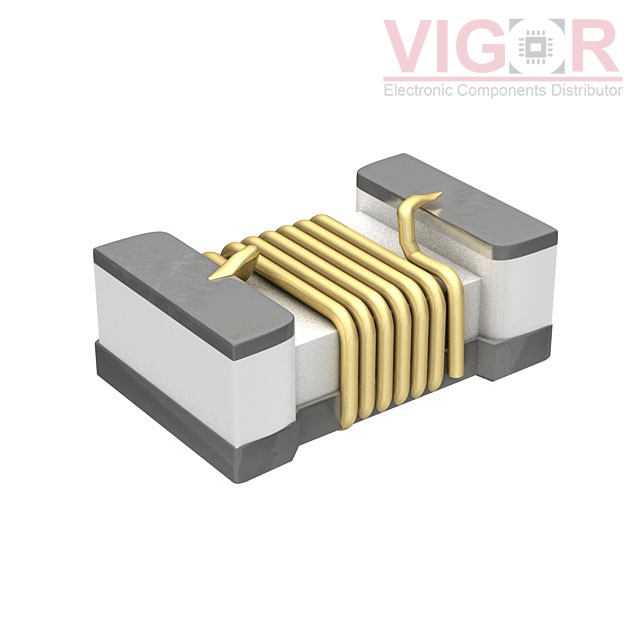

LQW04AN36NH20D

Image is for reference,
please contact us to get the real picture

Part No :: LQW04AN36NH20D

Manufacturer: TOKO / Murata

Description: FIXED IND 36NH 155MA 1.4 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: LQW04AN36NH20D PDF

Availability: 9810 pieces

Unit Price: ~~$0.48000~~

Current price of LQW04AN36NH20D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW04AN36NH20D Specifications

Type	Description
Series:	LQW04
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	36 nH
Tolerance:	±3%
Current Rating (Amps):	155 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.4Ohm Max
Q @ Freq:	19 @ 250MHz
Frequency - Self Resonant:	3.8GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0302 (0804 Metric)
Supplier Device Package:	03015 (0804 Metric)
Size / Dimension:	0.031" L x 0.016" W (0.80mm x 0.40mm)
Height - Seated (Max):	0.018" (0.45mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

HKQ0603W1N3B-T

FIXED IND 1.3NH 650MA 120 MOHM

HOT

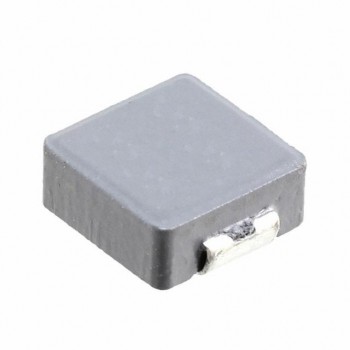

SRP7028A-6R8M

FIXED IND 6.8UH 4.5A 60 MOHM SMD

HOT

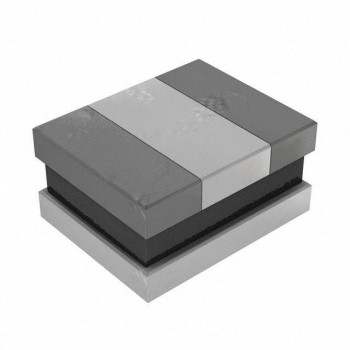

SRN2012-R47M
