IHLP4040DZEBR56M01

IHLP4040DZEBR56M01

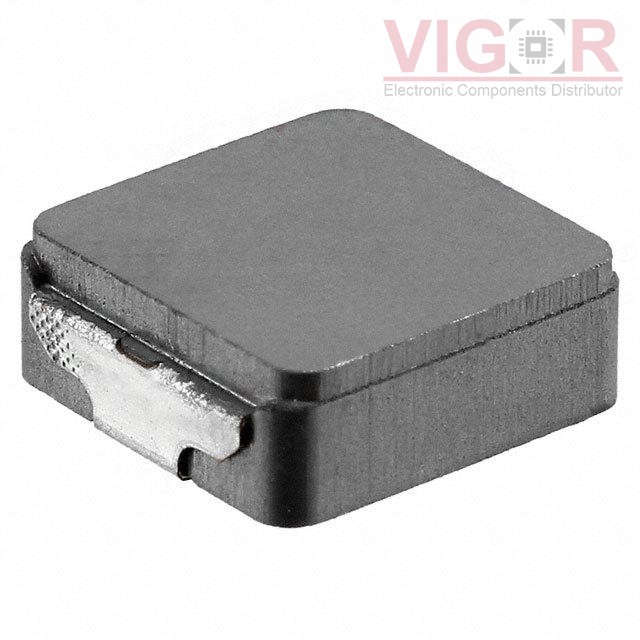

Image is for reference,
please contact us to get the real picture

Part No :

IHLP4040DZEBR56M01

Manufacturer
Vishay / Dale
Description
FIXED IND 560NH 27.5A 1.8 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IHLP4040DZEBR56M01 PDF
Availability
0 pieces
Unit Price
$2.25000

Current price of IHLP4040DZEBR56M01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP4040DZEBR56M01 Specifications
Type Description
Series:IHLP-4040DZ-01
Package:Bulk
Part Status:Obsolete
Type:Molded
Material - Core:-
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):27.5 A
Current - Saturation (Isat):49A
Shielding:Shielded
DC Resistance (DCR):1.95mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:4040
Size / Dimension:0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max):0.157" (4.00mm)
