LQW03AW12NJ00D

LQW03AW12NJ00D

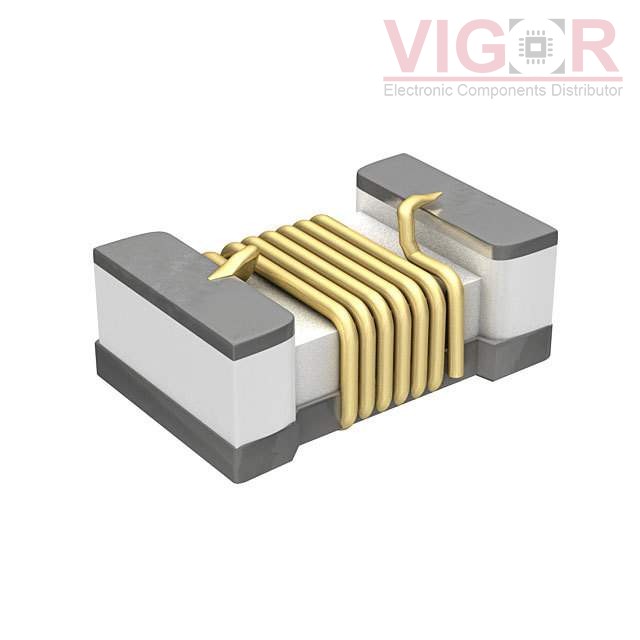

Image is for reference,
please contact us to get the real picture

Part No :

LQW03AW12NJ00D

Manufacturer
TOKO / Murata
Description
FIXED IND 12.5NH 280MA 540 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
LQW03AW12NJ00D PDF
Availability
368 pieces
Unit Price
$0.82000

Current price of LQW03AW12NJ00D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW03AW12NJ00D Specifications
Type Description
Series:LQW03
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:12.5 nH
Tolerance:±5%
Current Rating (Amps):280 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):540mOhm Max
Q @ Freq:39 @ 900MHz
Frequency - Self Resonant:6GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.021" L x 0.016" W (0.53mm x 0.40mm)
Height - Seated (Max):0.018" (0.45mm)
