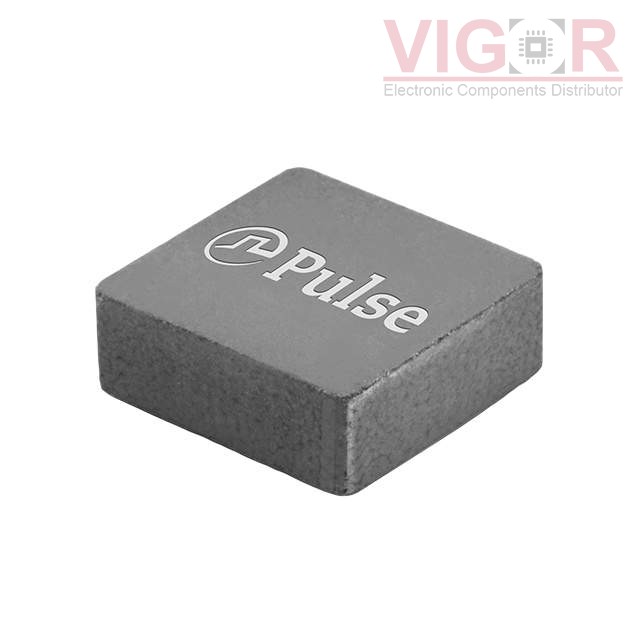

PA5004.122NLT

Image is for reference,
please contact us to get the real picture

Part No :: PA5004.122NLT

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 1.2UH 16A 7.4MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: PA5004.122NLT PDF

Availability: 913 pieces

Unit Price: ~~$1.82000~~

Current price of PA5004.122NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA5004.122NLT Specifications

Type	Description
Series:	PA5004.XXXNLT
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	Ferrite
Inductance:	1.2 µH
Tolerance:	±20%
Current Rating (Amps):	16 A
Current - Saturation (Isat):	22A
Shielding:	Shielded
DC Resistance (DCR):	7.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.268" L x 0.252" W (6.80mm x 6.40mm)
Height - Seated (Max):	0.122" (3.10mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SRR6028-560Y

FIXED IND 56UH 850MA 260MOHM SMD

HOT

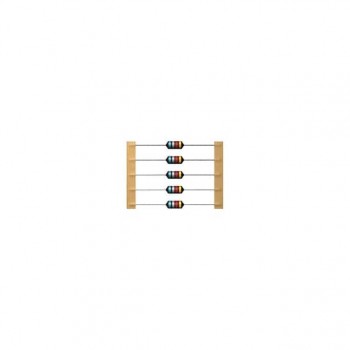

B82144A2473J009

FIXED IND 47UH 800MA 500 MOHM TH

HOT

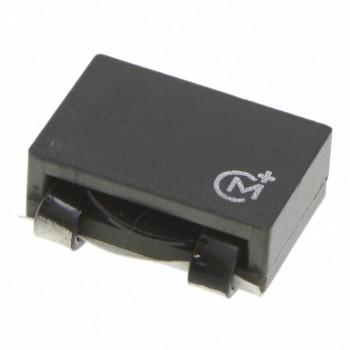

37112C
