VLBU9664100LT-R09L

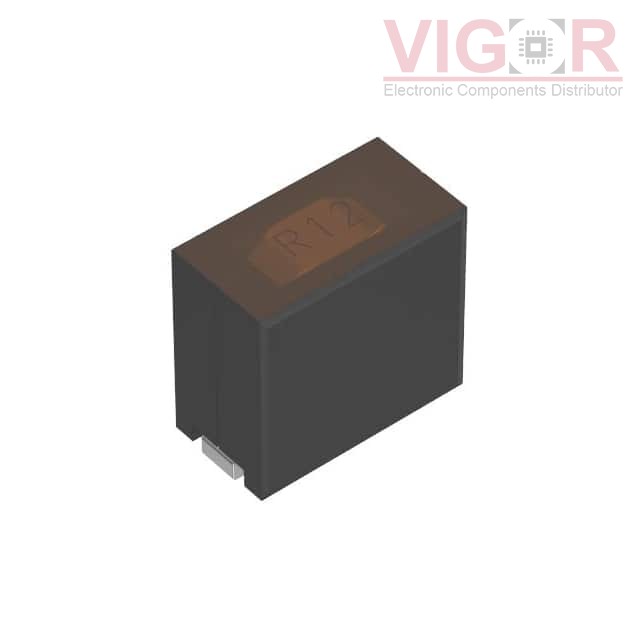

Image is for reference,
please contact us to get the real picture

Part No :: VLBU9664100LT-R09L

Manufacturer: TDK Corporation

Description: INDUCTORS FOR POWER CIRCUITS, WO

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: VLBU9664100LT-R09L PDF

Availability: 800 pieces

Unit Price: ~~$2.44000~~

Current price of VLBU9664100LT-R09L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VLBU9664100LT-R09L Specifications

Type	Description
Series:	VLBU
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	90 nH
Tolerance:	±15%
Current Rating (Amps):	75 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	0.138mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.378" L x 0.252" W (9.60mm x 6.40mm)
Height - Seated (Max):	0.394" (10.00mm)
