LQW04AN2N3C00D

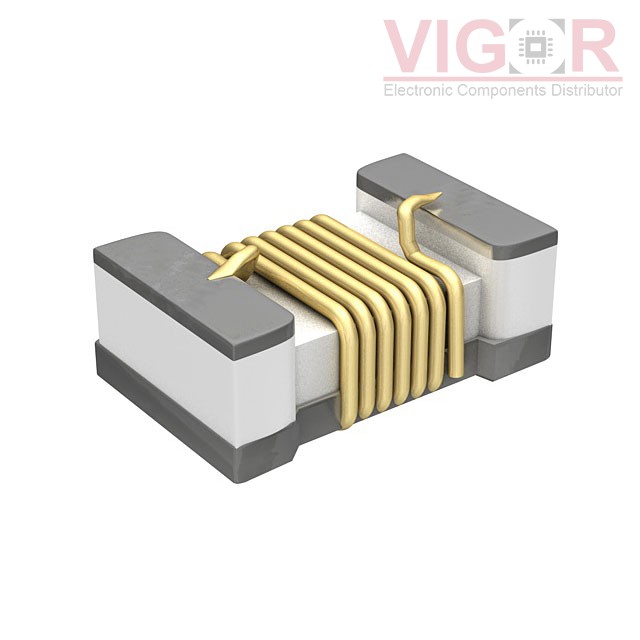

Image is for reference,
please contact us to get the real picture

Part No :: LQW04AN2N3C00D

Manufacturer: TOKO / Murata

Description: FIXED IND 2.3NH 780MA 70 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: LQW04AN2N3C00D PDF

Availability: 9845 pieces

Unit Price: ~~$0.42000~~

Current price of LQW04AN2N3C00D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW04AN2N3C00D Specifications

Type	Description
Series:	LQW04
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	2.3 nH
Tolerance:	±0.2nH
Current Rating (Amps):	780 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	70mOhm Max
Q @ Freq:	18 @ 250MHz
Frequency - Self Resonant:	20GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0302 (0804 Metric)
Supplier Device Package:	03015 (0804 Metric)
Size / Dimension:	0.031" L x 0.016" W (0.80mm x 0.40mm)
Height - Seated (Max):	0.018" (0.45mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
