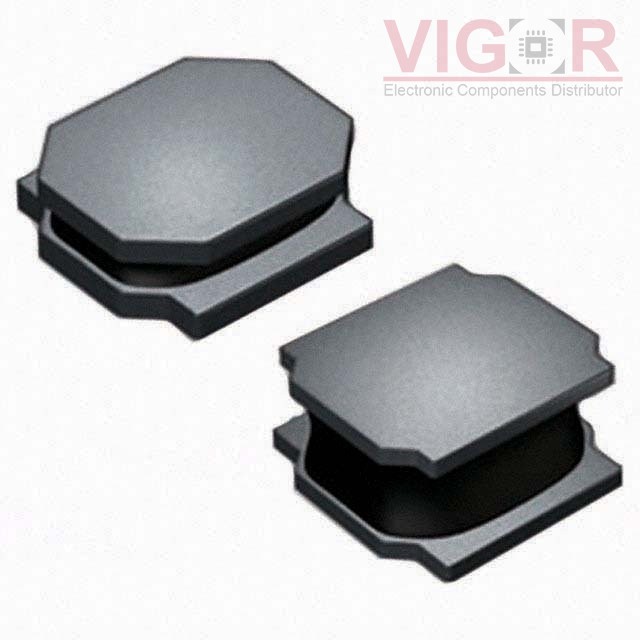

NRS4010T220MDGGV

Image is for reference,
please contact us to get the real picture

Part No :: NRS4010T220MDGGV

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 500MA 684 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: NRS4010T220MDGGV PDF

Availability: 575 pieces

Unit Price: ~~$0.45000~~

Current price of NRS4010T220MDGGV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NRS4010T220MDGGV Specifications

Type	Description
Series:	NR, S Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	450mA
Shielding:	Shielded
DC Resistance (DCR):	684mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	19MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):	0.039" (1.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

103-122H

FIXED IND 1.2UH 360MA 740 MOHM

HOT

PE-0603CD720GTT

FIXED IND 72NH 400MA 490 MOHM

HOT

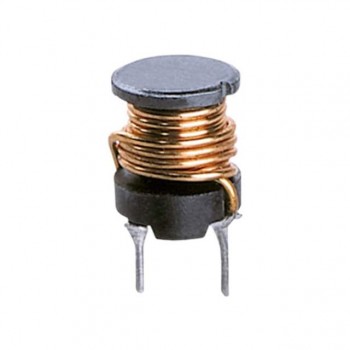

7447720472
