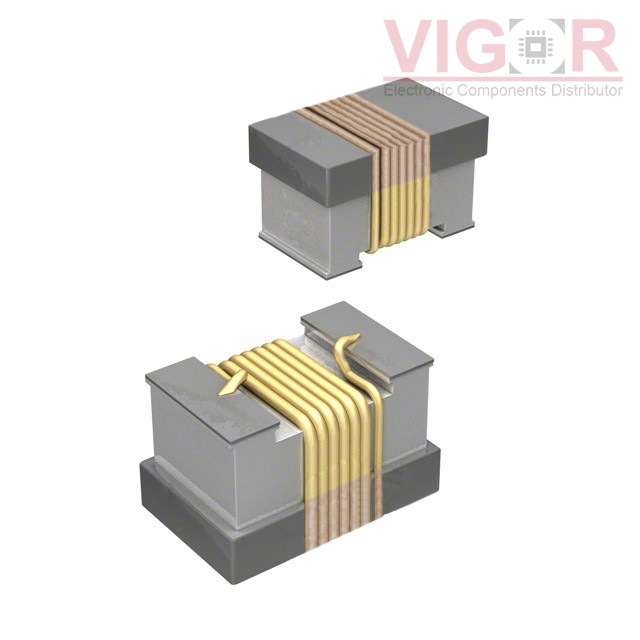

CW100505-18NJ

Image is for reference,
please contact us to get the real picture

Part No :: CW100505-18NJ

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 18NH 420MA 230MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: CW100505-18NJ PDF

Availability: 9185 pieces

Unit Price: ~~$0.34000~~

Current price of CW100505-18NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW100505-18NJ Specifications

Type	Description
Series:	CW100505
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	18 nH
Tolerance:	±5%
Current Rating (Amps):	420 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	230mOhm
Q @ Freq:	25 @ 250MHz
Frequency - Self Resonant:	3.1GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MLG0402P18NJT000

FIXED IND 18NH 140MA 2.8 OHM SMD

HOT

MLG1005S4N3CTD25

FIXED IND 4.3NH 700MA 200 MOHM

HOT

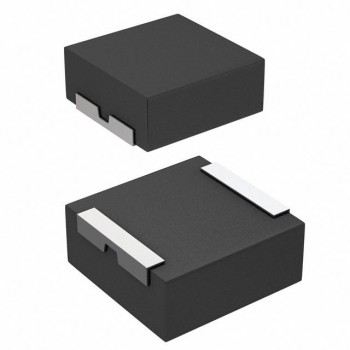

IHLP6767GZER470M11
