WCL2520-560-R

WCL2520-560-R

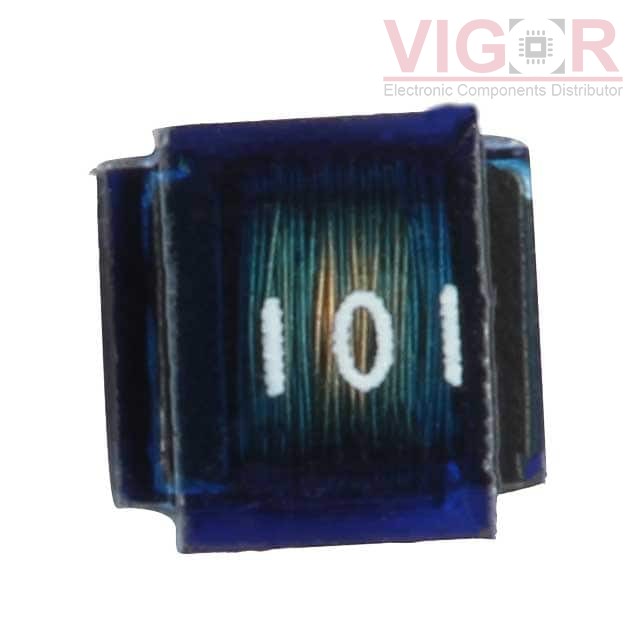

Image is for reference,
please contact us to get the real picture

Part No :

WCL2520-560-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 56UH 55MA 6 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
WCL2520-560-R PDF
Availability
0 pieces
Unit Price
$0.09900

Current price of WCL2520-560-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WCL2520-560-R Specifications
Type Description
Series:WCL2520
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:56 µH
Tolerance:±5%
Current Rating (Amps):55 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):6Ohm Max
Q @ Freq:10 @ 2.52MHz
Frequency - Self Resonant:6.5MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008
Size / Dimension:0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max):0.083" (2.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MLF1005G1R2KT000

MLF1005G1R2KT000

FIXED IND 1.2UH 35MA 790 MOHM
HOT 7449152066

7449152066

FIXED IND 66NH 32A 0.99 MOHM SMD

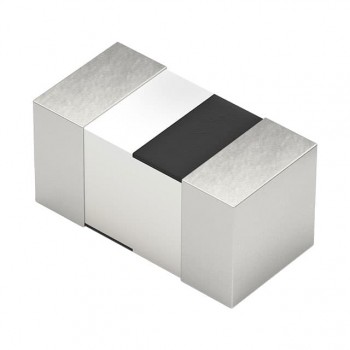

HOT LCCI0201S2N7GTAR
