CW100505-39NJ

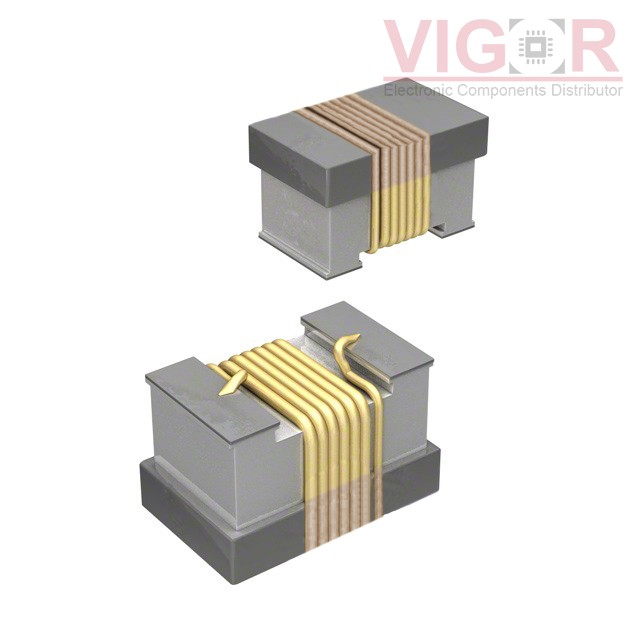

Image is for reference,
please contact us to get the real picture

Part No :: CW100505-39NJ

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 39NH 320MA 550MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: CW100505-39NJ PDF

Availability: 0 pieces

Unit Price: ~~$0.10540~~

Current price of CW100505-39NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW100505-39NJ Specifications

Type	Description
Series:	CW100505
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	39 nH
Tolerance:	±5%
Current Rating (Amps):	320 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	550mOhm
Q @ Freq:	25 @ 250MHz
Frequency - Self Resonant:	2.1GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):	0.024" (0.60mm)
