36502A56NJTDG

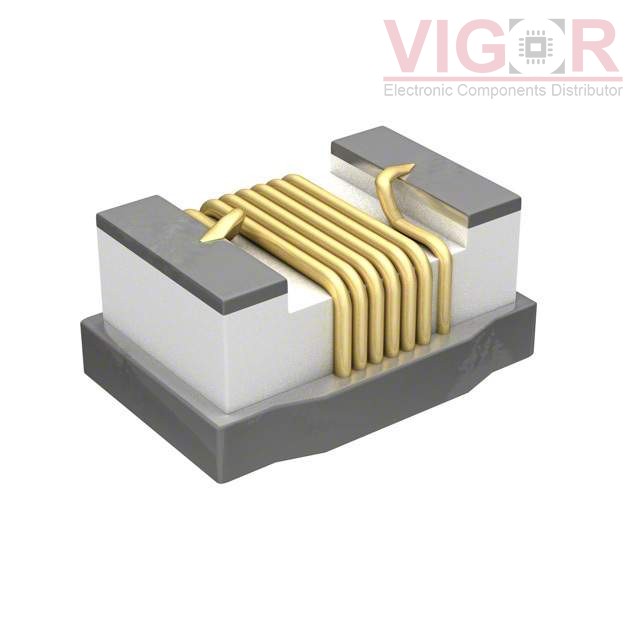

Image is for reference,
please contact us to get the real picture

Part No :: 36502A56NJTDG

Manufacturer: TE Connectivity AMP Connectors

Description: FIXED IND 56NH 500MA 340 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 17 - Jul 21 2025

DataSheet: 36502A56NJTDG PDF

Availability: 842 pieces

Unit Price: ~~$0.41000~~

Current price of 36502A56NJTDG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

36502A56NJTDG Specifications

Type	Description
Series:	3650, Sigma Inductors
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	56 nH
Tolerance:	±5%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	340mOhm Max
Q @ Freq:	60 @ 500MHz
Frequency - Self Resonant:	1.55GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.090" L x 0.068" W (2.29mm x 1.73mm)
Height - Seated (Max):	0.060" (1.52mm)
