WCL2520-3R3-R

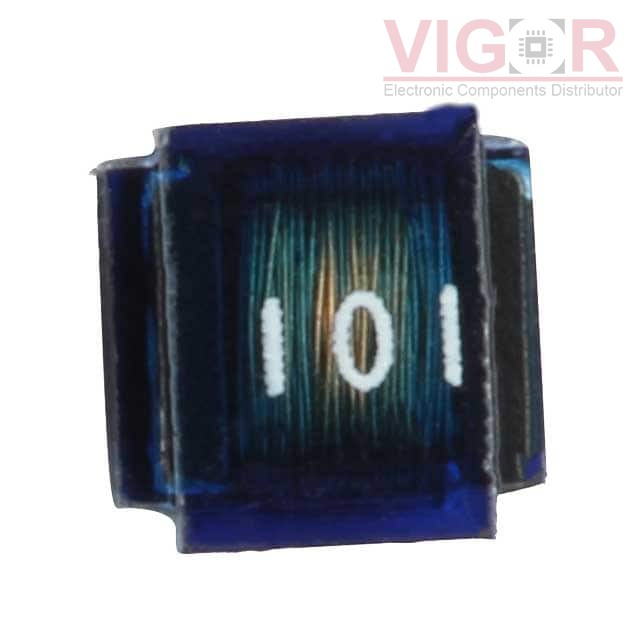

Image is for reference,
please contact us to get the real picture

Part No :: WCL2520-3R3-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 3.3UH 280MA 1.5OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: WCL2520-3R3-R PDF

Availability: 3980 pieces

Unit Price: ~~$0.25000~~

Current price of WCL2520-3R3-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

WCL2520-3R3-R Specifications

Type	Description
Series:	WCL2520
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	3.3 µH
Tolerance:	±5%
Current Rating (Amps):	280 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.5Ohm Max
Q @ Freq:	12 @ 7.96MHz
Frequency - Self Resonant:	80MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008
Size / Dimension:	0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max):	0.083" (2.10mm)
