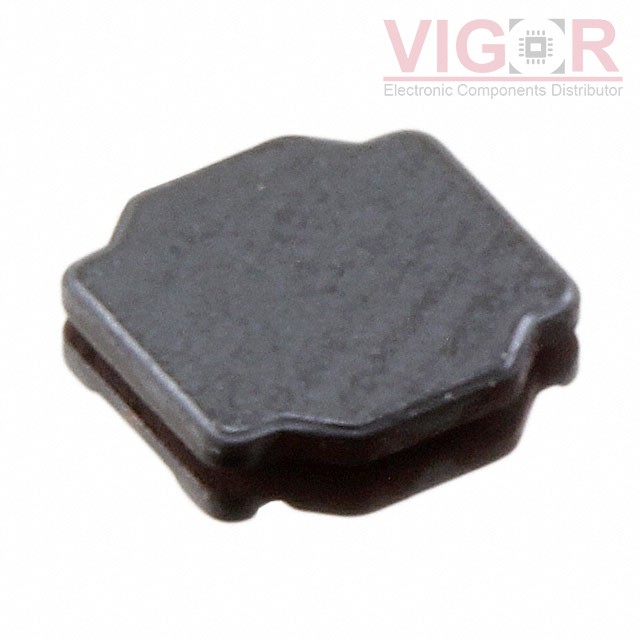

LQH44PN100MGRL

Image is for reference,
please contact us to get the real picture

Part No :: LQH44PN100MGRL

Manufacturer: TOKO / Murata

Description: FIXED IND 10UH 660MA 324 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: LQH44PN100MGRL PDF

Availability: 1 pieces

Unit Price: ~~$0.45000~~

Current price of LQH44PN100MGRL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH44PN100MGRL Specifications

Type	Description
Series:	LQH44
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	660 mA
Current - Saturation (Isat):	800mA
Shielding:	Shielded
DC Resistance (DCR):	324mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	1515 (4040 Metric)
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):	0.039" (1.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SRP3012TA-6R8M

FIXED IND 6.8UH 1.4A 400MOHM SMD

HOT

77F180K-TR-RC

FIXED IND 18UH 430MA 800 MOHM TH

HOT

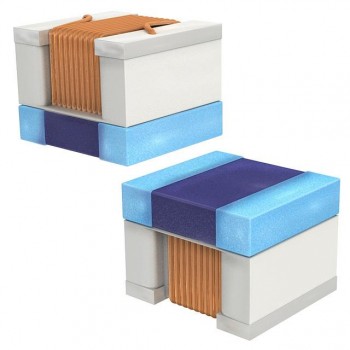

LQW2UASR27G00L
