IHLP2525CZER220M11

IHLP2525CZER220M11

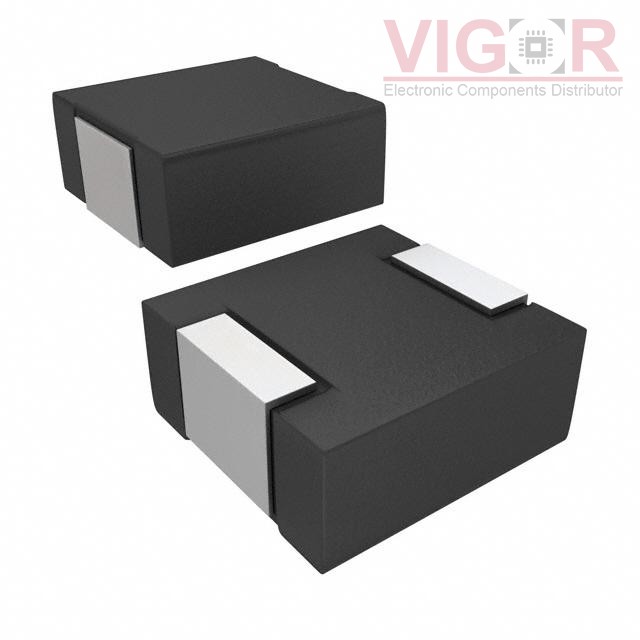

Image is for reference,
please contact us to get the real picture

Part No :

IHLP2525CZER220M11

Manufacturer
Vishay / Dale
Description
FIXED IND 22UH 2.9A 135 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
IHLP2525CZER220M11 PDF
Availability
23605 pieces
Unit Price
$1.19000

Current price of IHLP2525CZER220M11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP2525CZER220M11 Specifications
Type Description
Series:IHLP-2525CZ-11
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:Iron Powder
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):2.9 A
Current - Saturation (Isat):2.5A
Shielding:Shielded
DC Resistance (DCR):135mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max):0.118" (3.00mm)
