SDR0604-821KL

SDR0604-821KL

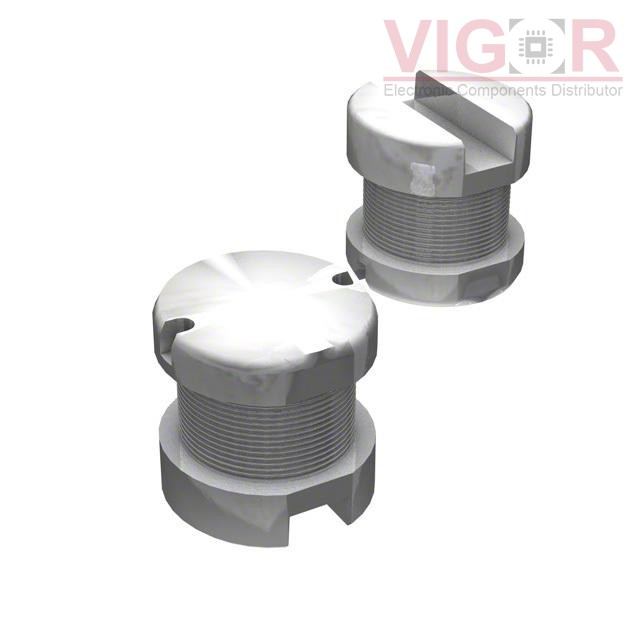

Image is for reference,
please contact us to get the real picture

Part No :

SDR0604-821KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 820UH 140MA 5.2OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
SDR0604-821KL PDF
Availability
0 pieces
Unit Price
$0.57000

Current price of SDR0604-821KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0604-821KL Specifications
Type Description
Series:SDR0604
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:820 µH
Tolerance:±10%
Current Rating (Amps):140 mA
Current - Saturation (Isat):200mA
Shielding:Unshielded
DC Resistance (DCR):5.2Ohm Max
Q @ Freq:25 @ 252kHz
Frequency - Self Resonant:2MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.189" (4.80mm)
