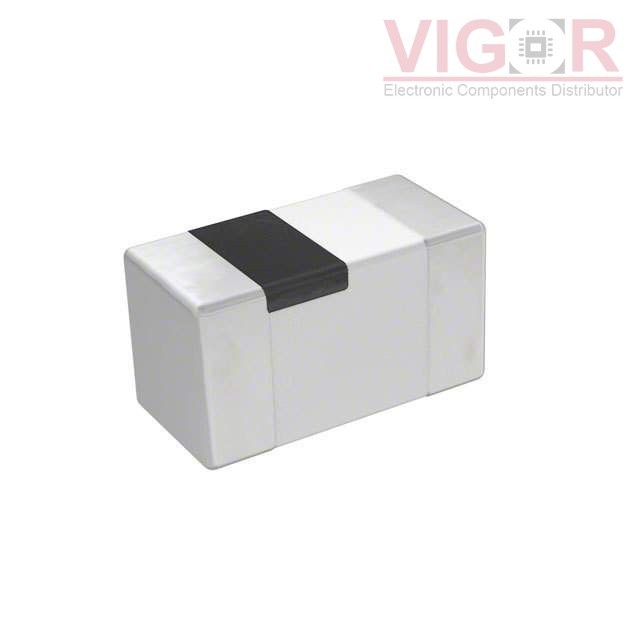

MLG1005S20NJTD25

Image is for reference,
please contact us to get the real picture

Part No :

MLG1005S20NJTD25

Manufacturer
TDK Corporation
Description
FIXED IND 20NH 350MA 600 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
MLG1005S20NJTD25 PDF
Availability
14297 pieces
Unit Price
$0.14000

Current price of MLG1005S20NJTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:MLG
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ceramic, Non-Magnetic
Inductance:20 nH
Tolerance:±5%
Current Rating (Amps):350 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):600mOhm Max
Q @ Freq:8 @ 100MHz
Frequency - Self Resonant:1.9GHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.022" (0.55mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

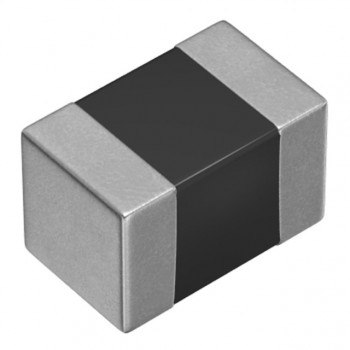

HOT MLF2012K560KTD25

MLF2012K560KTD25

FIXED IND 56UH 4MA 2.8 OHM SMD

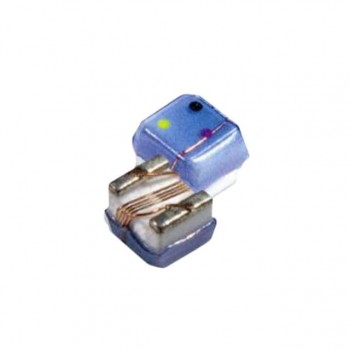

HOT BWCS00161008R27G00

BWCS00161008R27G00

FIXED IND 270NH 170MA 2.8OHM SMD

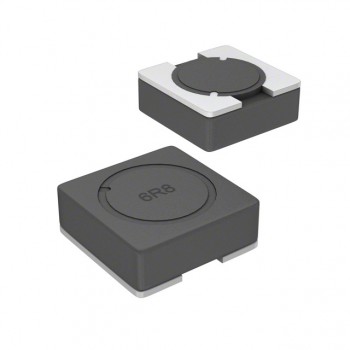

HOT SRR4018-180Y
