VCHA075D-220MS6

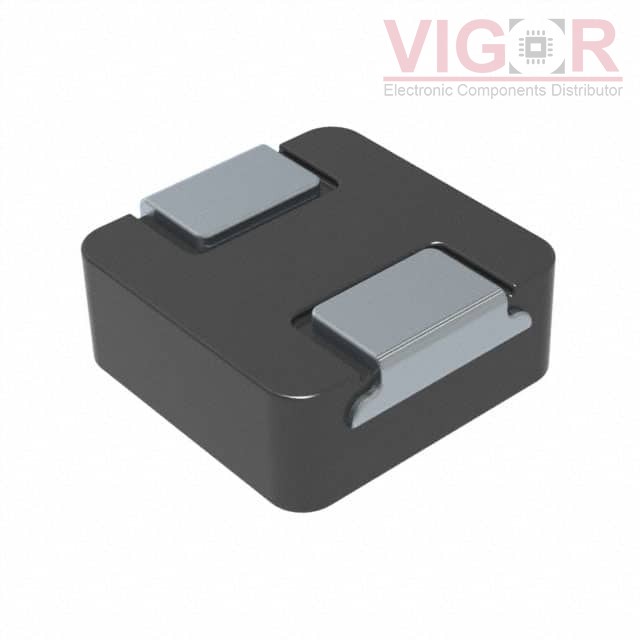

Image is for reference,
please contact us to get the real picture

Part No :: VCHA075D-220MS6

Manufacturer: Delta Electronics

Description: FIXED IND 22UH 3.3A 93.5 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: VCHA075D-220MS6 PDF

Availability: 1099 pieces

Unit Price: ~~$1.52000~~

Current price of VCHA075D-220MS6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VCHA075D-220MS6 Specifications

Type	Description
Series:	VCHA075D
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Metal
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	3.3 A
Current - Saturation (Isat):	5.4A
Shielding:	Unshielded
DC Resistance (DCR):	93.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 165°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.303" L x 0.283" W (7.70mm x 7.20mm)
Height - Seated (Max):	0.213" (5.40mm)
