SDR1305-681K

SDR1305-681K

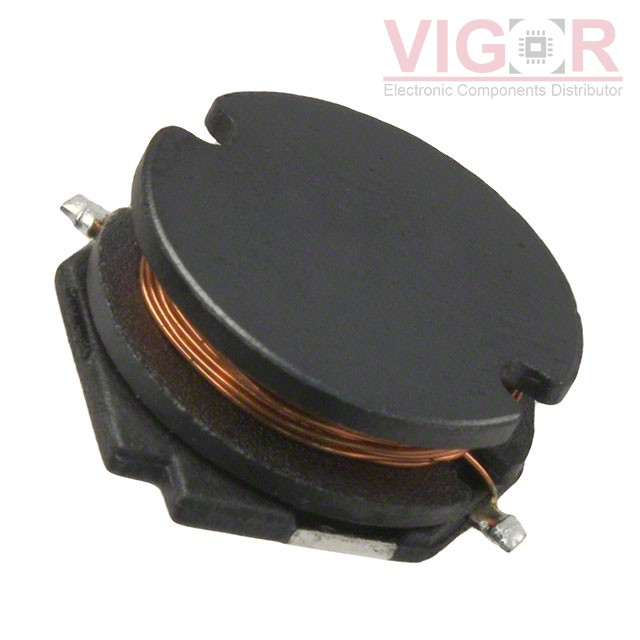

Image is for reference,
please contact us to get the real picture

Part No :

SDR1305-681K

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 680UH 600MA 1.4OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
SDR1305-681K PDF
Availability
0 pieces
Unit Price
$0.40480

Current price of SDR1305-681K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1305-681K Specifications
Type Description
Series:SDR1305
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:680 µH
Tolerance:±10%
Current Rating (Amps):600 mA
Current - Saturation (Isat):580mA
Shielding:Unshielded
DC Resistance (DCR):1.4Ohm Max
Q @ Freq:12 @ 796kHz
Frequency - Self Resonant:3.5MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max):0.201" (5.10mm)
