AX104R-150

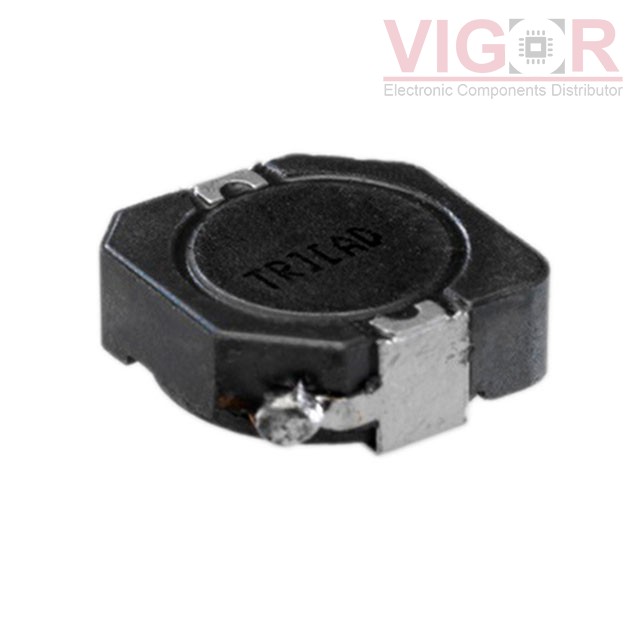

Image is for reference,
please contact us to get the real picture

Part No :: AX104R-150

Manufacturer: Triad Magnetics

Description: FIXED IND 15UH 3.6A 50 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: AX104R-150 PDF

Availability: 0 pieces

Unit Price: ~~$0.47600~~

Current price of AX104R-150 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX104R-150 Specifications

Type	Description
Series:	AX104R
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	15 µH
Tolerance:	±30%
Current Rating (Amps):	3.6 A
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	50mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	SMD
Size / Dimension:	0.409" L x 0.406" W (10.40mm x 10.30mm)
Height - Seated (Max):	0.157" (4.00mm)

Please confirm the specifications of the products when ordering.
