SDE0805A-1R5M

SDE0805A-1R5M

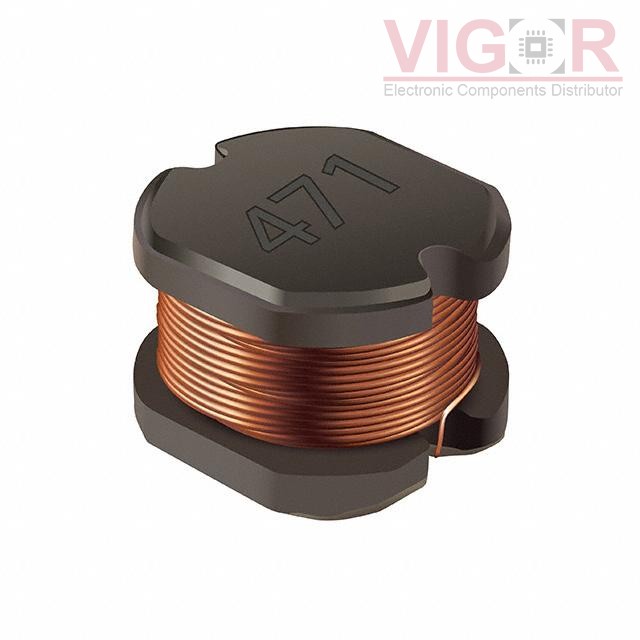

Image is for reference,
please contact us to get the real picture

Part No :

SDE0805A-1R5M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 1.5UH 5.8A 20 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
SDE0805A-1R5M PDF
Availability
199 pieces
Unit Price
$0.77000

Current price of SDE0805A-1R5M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDE0805A-1R5M Specifications
Type Description
Series:SDE0805A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:1.5 µH
Tolerance:±20%
Current Rating (Amps):5.8 A
Current - Saturation (Isat):6.5A
Shielding:Unshielded
DC Resistance (DCR):20mOhm Max
Q @ Freq:-
Frequency - Self Resonant:115MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):0.217" (5.50mm)
