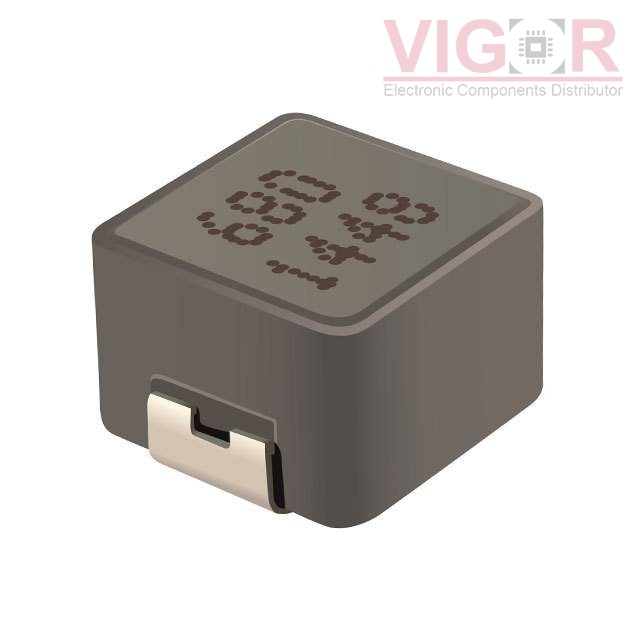

SRP7050TA-R56M

SRP7050TA-R56M

Image is for reference,
please contact us to get the real picture

Part No :

SRP7050TA-R56M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560NH 20A 4.2 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
SRP7050TA-R56M PDF
Availability
800 pieces
Unit Price
$1.50000

Current price of SRP7050TA-R56M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP7050TA-R56M Specifications
Type Description
Series:SRP7050TA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Carbonyl Powder
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):20 A
Current - Saturation (Isat):27A
Shielding:Shielded
DC Resistance (DCR):4.2mOhm Max
Q @ Freq:10 @ 100kHz
Frequency - Self Resonant:80MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max):0.197" (5.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

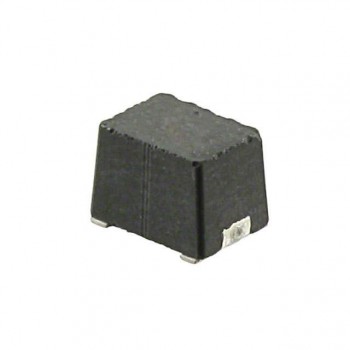

HOT ISC1812EBR82K

ISC1812EBR82K

FIXED IND 820NH 271MA 950 MOHM

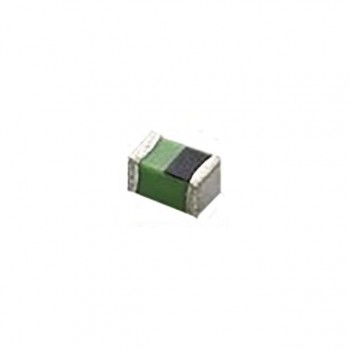

HOT LQG15WZ62NJ02D

LQG15WZ62NJ02D

FIXED IND 62NH 180MA 1.9 OHM SMD

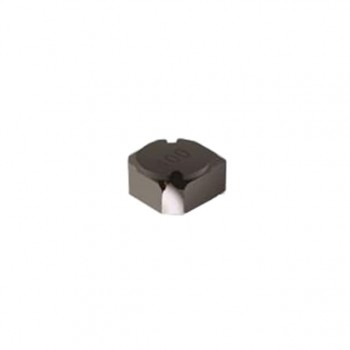

HOT SRR4528A-3R3Y
