1812-564H

1812-564H

Image is for reference,
please contact us to get the real picture

Part No :

1812-564H

Manufacturer
API Delevan
Description
FIXED IND 560UH 82MA 30 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
1812-564H PDF
Availability
0 pieces
Unit Price
$1.97760

Current price of 1812-564H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1812-564H Specifications
Type Description
Series:1812
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±3%
Current Rating (Amps):82 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):30Ohm Max
Q @ Freq:30 @ 790kHz
Frequency - Self Resonant:3MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:790 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD
Supplier Device Package:-
Size / Dimension:0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max):0.190" (4.83mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MDMK3030T1R5MMV

MDMK3030T1R5MMV

FIXED IND 1.5UH 3A 74 MOHM SMD
HOT SBCP-47HY102B

SBCP-47HY102B

FIXED IND 1MH 150MA 6 OHM TH

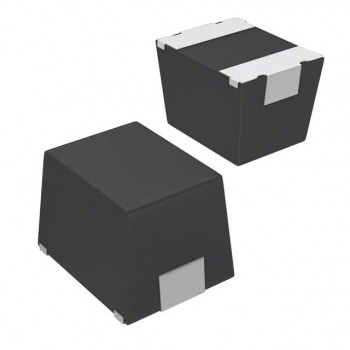

HOT ISC1210SYR33M
