ELL-8TP4R7NB

ELL-8TP4R7NB

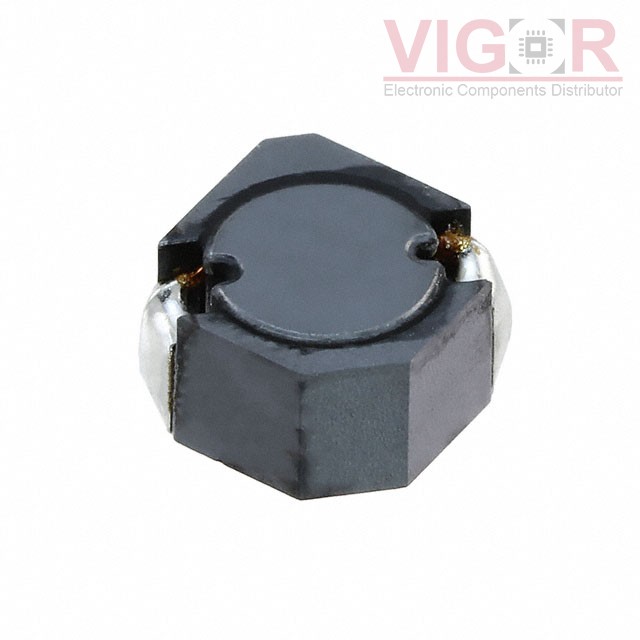

Image is for reference,
please contact us to get the real picture

Part No :

ELL-8TP4R7NB

Manufacturer
Panasonic
Description
FIXED IND 4.7UH 4A 14 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
ELL-8TP4R7NB PDF
Availability
0 pieces
Unit Price
$1.00000

Current price of ELL-8TP4R7NB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-8TP4R7NB Specifications
Type Description
Series:P
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:4.7 µH
Tolerance:±30%
Current Rating (Amps):4 A
Current - Saturation (Isat):4A
Shielding:Shielded
DC Resistance (DCR):14mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard, Corner Terminals
Supplier Device Package:-
Size / Dimension:0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):0.197" (5.00mm)
