LQP15MN9N1B02D

LQP15MN9N1B02D

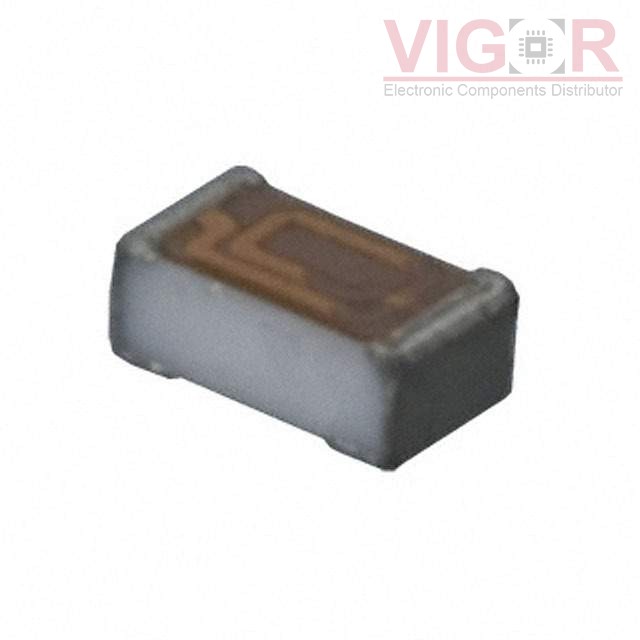

Image is for reference,
please contact us to get the real picture

Part No :

LQP15MN9N1B02D

Manufacturer
TOKO / Murata
Description
FIXED IND 9.1NH 100MA 1.3 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
LQP15MN9N1B02D PDF
Availability
4031 pieces
Unit Price
$0.18000

Current price of LQP15MN9N1B02D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQP15MN9N1B02D Specifications
Type Description
Series:LQP15
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Type:Thick Film
Material - Core:Non-Magnetic
Inductance:9.1 nH
Tolerance:±0.1nH
Current Rating (Amps):100 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.3Ohm Max
Q @ Freq:13 @ 500MHz
Frequency - Self Resonant:4.5GHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:500 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.018" (0.45mm)
