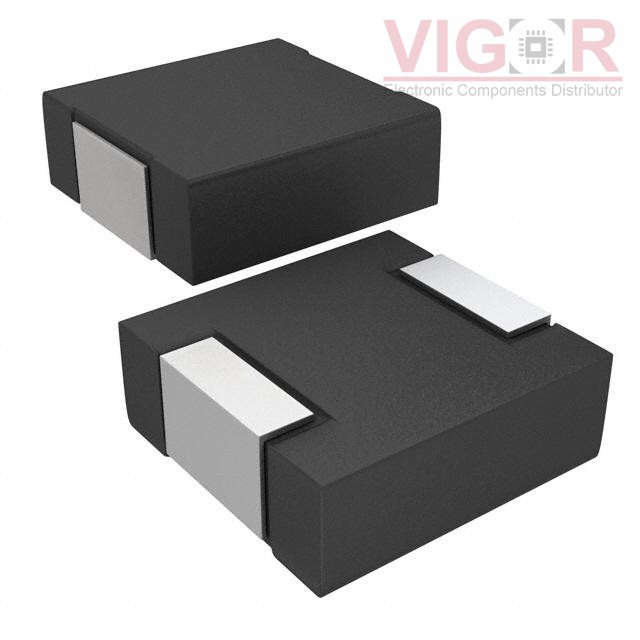

IHLP2020CZET2R2M11

Image is for reference,
please contact us to get the real picture

Part No :: IHLP2020CZET2R2M11

Manufacturer: Vishay / Dale

Description: FIXED IND 2.2UH 6.75A 25MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: IHLP2020CZET2R2M11 PDF

Availability: 1775 pieces

Unit Price: ~~$1.22000~~

Current price of IHLP2020CZET2R2M11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP2020CZET2R2M11 Specifications

Type	Description
Series:	IHLP-2020CZ-11
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	6.75 A
Current - Saturation (Isat):	5.5A
Shielding:	Shielded
DC Resistance (DCR):	25mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	37MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max):	0.118" (3.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

NLC453232T-6R8K-PF

FIXED IND 6.8UH 600MA 350 MOHM

HOT

744764118

FIXED IND 18UH 120MA 3.3 OHM SMD

HOT

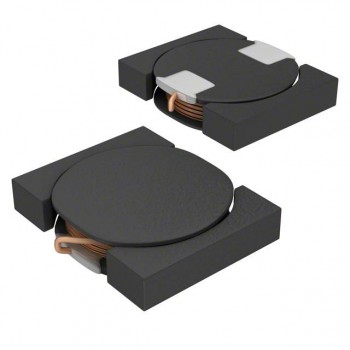

VLF504010MT-6R8M
