SDR0503-102KL

Image is for reference,
please contact us to get the real picture

Part No :: SDR0503-102KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 1MH 110MA 11.5 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: SDR0503-102KL PDF

Availability: 0 pieces

Unit Price: ~~$0.62000~~

Current price of SDR0503-102KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0503-102KL Specifications

Type	Description
Series:	SDR0503
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 mH
Tolerance:	±10%
Current Rating (Amps):	110 mA
Current - Saturation (Isat):	135mA
Shielding:	Unshielded
DC Resistance (DCR):	11.5Ohm Max
Q @ Freq:	40 @ 252kHz
Frequency - Self Resonant:	3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.197" L x 0.189" W (5.00mm x 4.80mm)
Height - Seated (Max):	0.130" (3.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

AISC-0805HQ-12NJ-T

FIXED IND 12NH 1.6A 45 MOHM SMD

HOT

ISC1812RXR39K

FIXED IND 390NH 394MA 450 MOHM

HOT

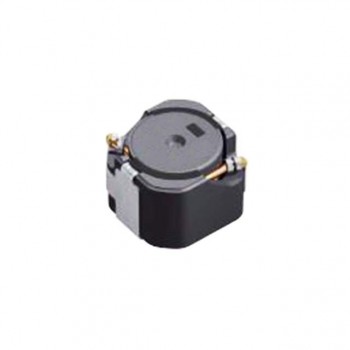

CLF12577NIT-151M-D
