IMC0603ER2N0S01

IMC0603ER2N0S01

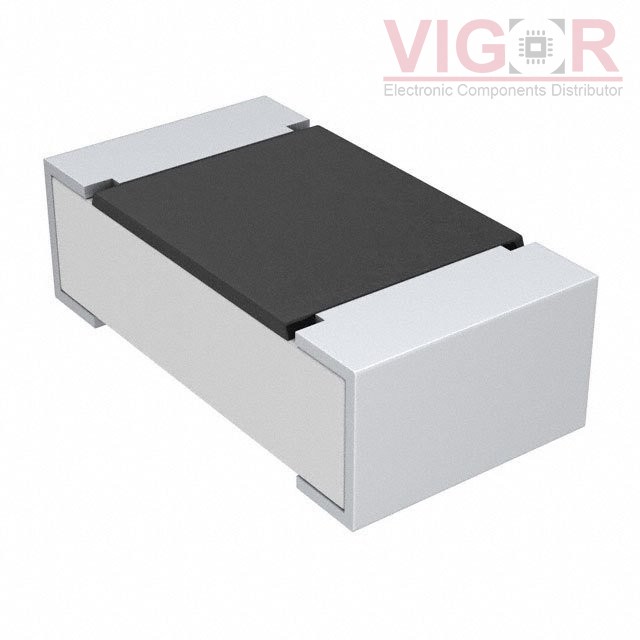

Image is for reference,
please contact us to get the real picture

Part No :

IMC0603ER2N0S01

Manufacturer
Vishay / Dale
Description
FIXED IND 2NH 700MA 80 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
IMC0603ER2N0S01 PDF
Availability
0 pieces
Unit Price
$0.10880

Current price of IMC0603ER2N0S01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC0603ER2N0S01 Specifications
Type Description
Series:IMC-0603-01
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:2 nH
Tolerance:±0.3nH
Current Rating (Amps):700 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):80mOhm Max
Q @ Freq:16 @ 250MHz
Frequency - Self Resonant:6.9GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max):0.049" (1.25mm)
