AX1005-102K

AX1005-102K

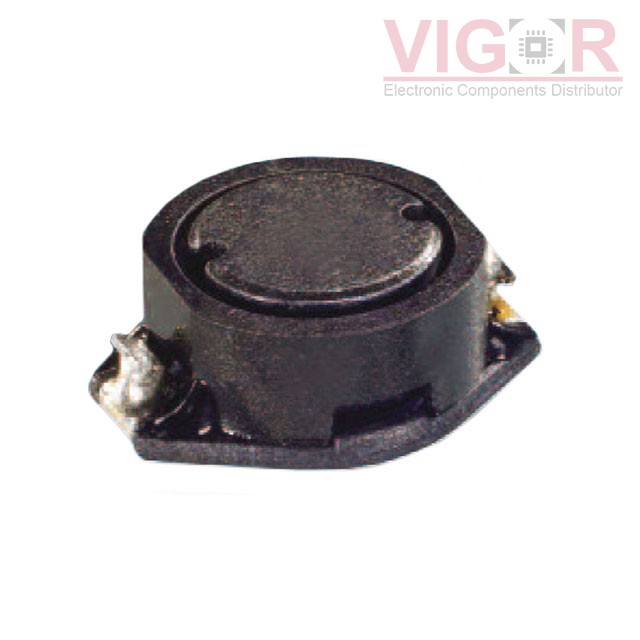

Image is for reference,
please contact us to get the real picture

Part No :

AX1005-102K

Manufacturer
Triad Magnetics
Description
FIXED IND 1MH 220MA 3.2 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
AX1005-102K PDF
Availability
35400 pieces
Unit Price
$0.63000

Current price of AX1005-102K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX1005-102K Specifications
Type Description
Series:AX1005
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:1 mH
Tolerance:±10%
Current Rating (Amps):220 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):3.2Ohm Max
Q @ Freq:70 @ 100kHz
Frequency - Self Resonant:2MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:SMD
Size / Dimension:0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):0.193" (4.90mm)
