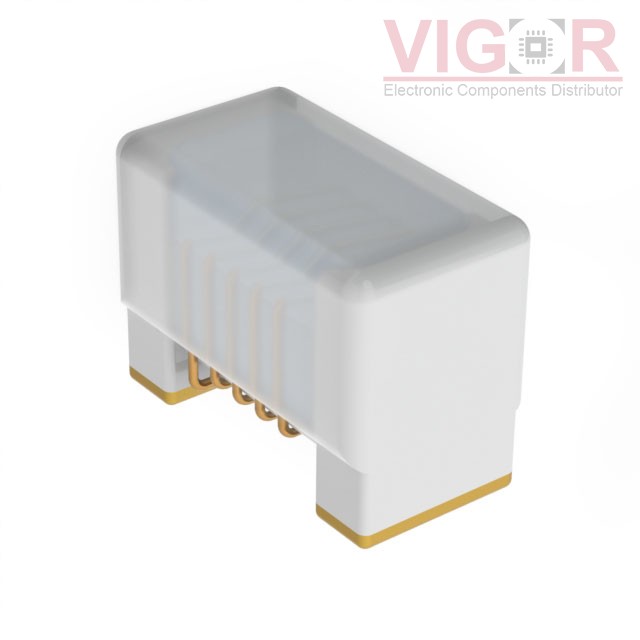

CW105550A-56NJ

CW105550A-56NJ

Image is for reference,
please contact us to get the real picture

Part No :

CW105550A-56NJ

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56NH 200MA 970MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
CW105550A-56NJ PDF
Availability
945 pieces
Unit Price
$0.25000

Current price of CW105550A-56NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW105550A-56NJ Specifications
Type Description
Series:CW105550A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Ceramic
Inductance:56 nH
Tolerance:±5%
Current Rating (Amps):200 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):970mOhm Max
Q @ Freq:22 @ 200MHz
Frequency - Self Resonant:1.76GHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:200 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402
Size / Dimension:0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):0.024" (0.60mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RL895-122K-RC

RL895-122K-RC

FIXED IND 1.2MH 270MA 2.1 OHM TH
HOT 7447452331

7447452331

FIXED IND 330UH 1.1A 470 MOHM TH

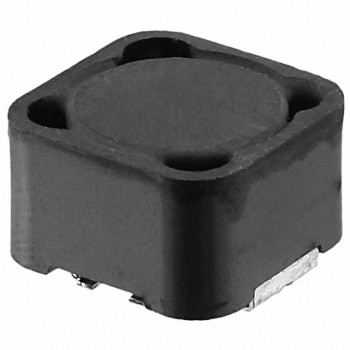

HOT P1173.223NL
