HCM1A1307-R22-R

HCM1A1307-R22-R

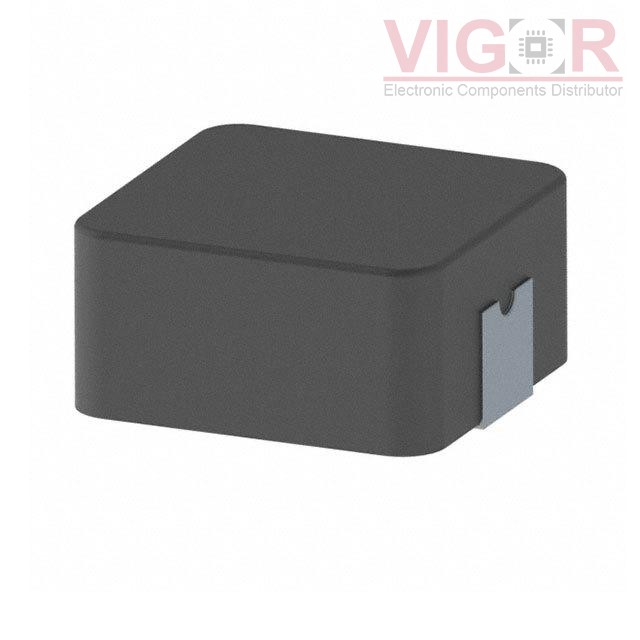

Image is for reference,
please contact us to get the real picture

Part No :

HCM1A1307-R22-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 220NH 48A 0.70MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
HCM1A1307-R22-R PDF
Availability
0 pieces
Unit Price
$3.04436

Current price of HCM1A1307-R22-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCM1A1307-R22-R Specifications
Type Description
Series:HCM1A
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Iron Powder
Inductance:220 nH
Tolerance:±20%
Current Rating (Amps):48 A
Current - Saturation (Isat):100A
Shielding:Shielded
DC Resistance (DCR):0.70mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.539" L x 0.512" W (13.70mm x 13.00mm)
Height - Seated (Max):0.256" (6.50mm)
