0603DC-75NXGRW

0603DC-75NXGRW

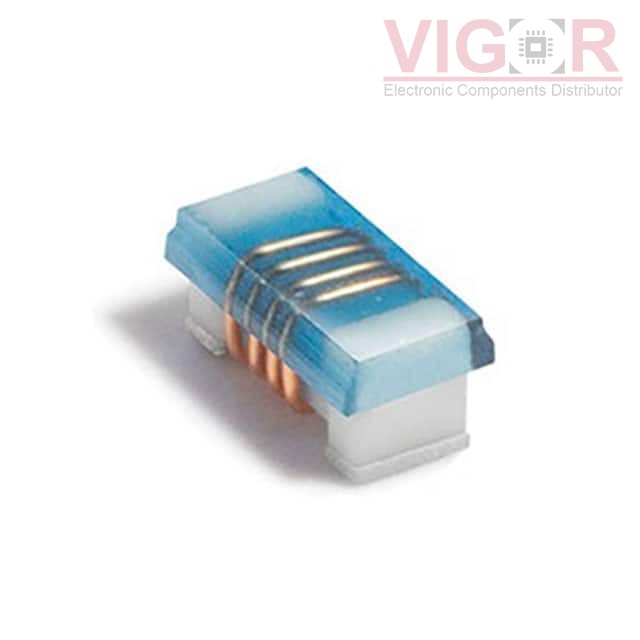

Image is for reference,
please contact us to get the real picture

Part No :

0603DC-75NXGRW

Manufacturer
COILCRAFT
Description
CERAMIC CHIP INDUCTORS 75NH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
0603DC-75NXGRW PDF
Availability
3954 pieces
Unit Price
$1.13000

Current price of 0603DC-75NXGRW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0603DC-75NXGRW Specifications
Type Description
Series:0603DC
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:75 nH
Tolerance:±2%
Current Rating (Amps):860 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):396mOhm Max
Q @ Freq:62 @ 900MHz
Frequency - Self Resonant:1.6GHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:150 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Size / Dimension:0.067" L x 0.039" W (1.70mm x 0.99mm)
Height - Seated (Max):0.035" (0.89mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MLK1005S6N8JT000

MLK1005S6N8JT000

FIXED IND 6.8NH 400MA 350 MOHM
HOT SC306R8KT

SC306R8KT

FIXED IND 6.8UH 298MA 2 OHM TH

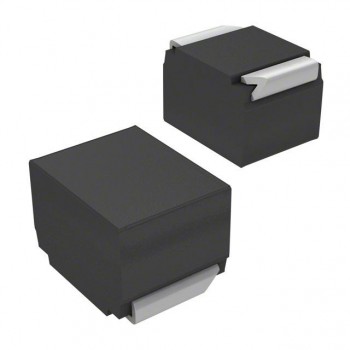

HOT B82422H1154J000
