MCQ1V3216-R560-R

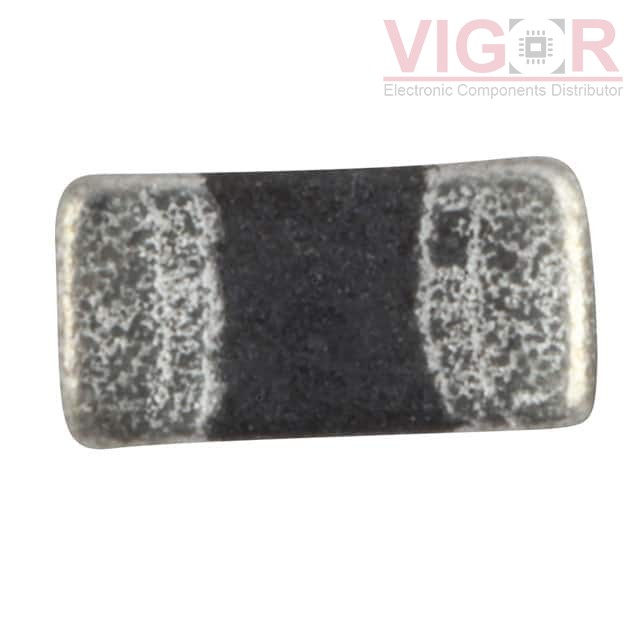

Image is for reference,
please contact us to get the real picture

Part No :

MCQ1V3216-R560-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 560NH 150MA 500 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
MCQ1V3216-R560-R PDF
Availability
0 pieces
Unit Price
$0.02344

Current price of MCQ1V3216-R560-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:MCQ1V3216
Package:Tape & Reel (TR)
Part Status:Active
Type:Multilayer
Material - Core:-
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):150 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):500mOhm Max
Q @ Freq:30 @ 25MHz
Frequency - Self Resonant:115MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric)
Supplier Device Package:1206
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):0.043" (1.10mm)
