CMH322522-120KL

CMH322522-120KL

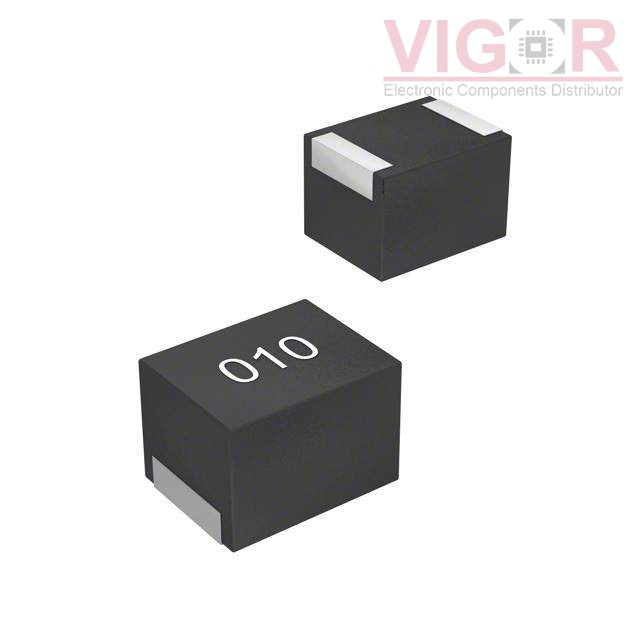

Image is for reference,
please contact us to get the real picture

Part No :

CMH322522-120KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 12UH 140MA 2.5 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
CMH322522-120KL PDF
Availability
0 pieces
Unit Price
$0.20570

Current price of CMH322522-120KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMH322522-120KL Specifications
Type Description
Series:CMH322522
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:12 µH
Tolerance:±10%
Current Rating (Amps):140 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):2.5Ohm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:20MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1210 (3225 Metric)
Supplier Device Package:1210
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQW18AN4N7G8ZD

LQW18AN4N7G8ZD

FIXED IND 4.7NH 1.5A 54 MOHM
HOT NS12575T6R8NN

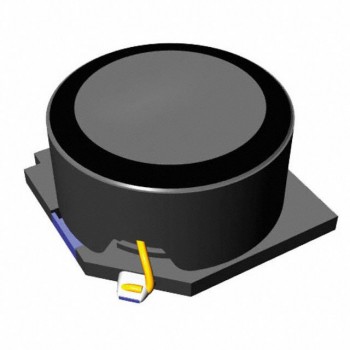

NS12575T6R8NN

FIXED IND 6.8UH 5.84A 15.72 MOHM
HOT SRP5030T-3R3M

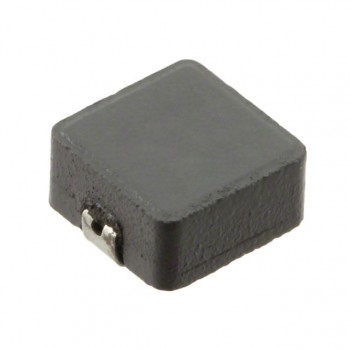

SRP5030T-3R3M
