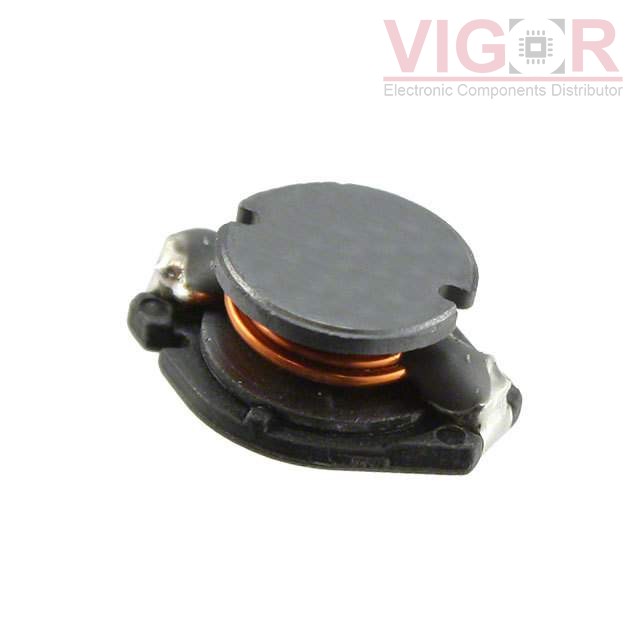

SDR1005-822KL

SDR1005-822KL

Image is for reference,
please contact us to get the real picture

Part No :

SDR1005-822KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 8.2MH 110MA 34 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
SDR1005-822KL PDF
Availability
686 pieces
Unit Price
$0.84000

Current price of SDR1005-822KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1005-822KL Specifications
Type Description
Series:SDR1005
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:8.2 mH
Tolerance:±10%
Current Rating (Amps):110 mA
Current - Saturation (Isat):120mA
Shielding:Unshielded
DC Resistance (DCR):34Ohm Max
Q @ Freq:102 @ 145kHz
Frequency - Self Resonant:1MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max):0.197" (5.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MHQ1005P56NHTD25

MHQ1005P56NHTD25

FIXED IND 56NH 180MA 1.8 OHM SMD
HOT SD3112-100-R

SD3112-100-R

FIXED IND 10UH 550MA 446 MOHM

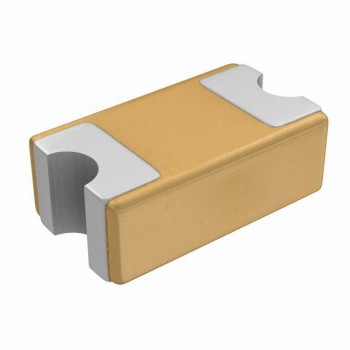

HOT HLQ023R9BTTR
