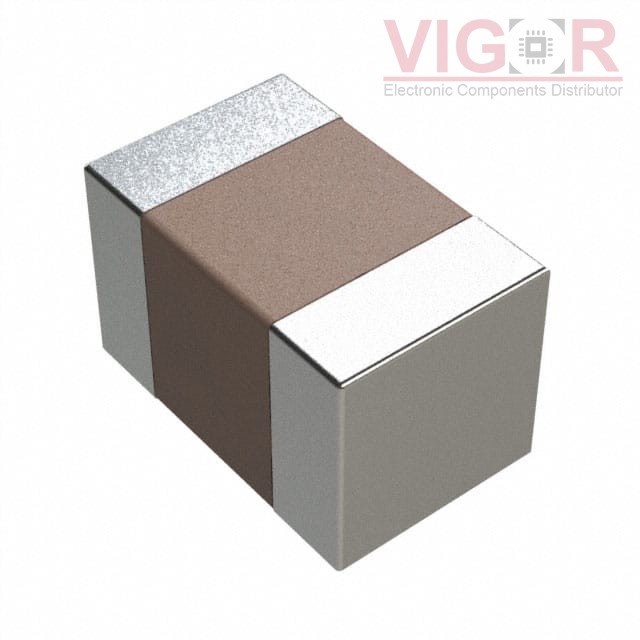

CV201210-R56K

Image is for reference,
please contact us to get the real picture

Part No :: CV201210-R56K

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 560NH 150MA 750MOHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: CV201210-R56K PDF

Availability: 6674 pieces

Unit Price: ~~$0.10000~~

Current price of CV201210-R56K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CV201210-R56K Specifications

Type	Description
Series:	CV201210
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	560 nH
Tolerance:	±10%
Current Rating (Amps):	150 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	750mOhm Max
Q @ Freq:	25 @ 25MHz
Frequency - Self Resonant:	115MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.057" (1.45mm)
