LQW04AN52NJ20D

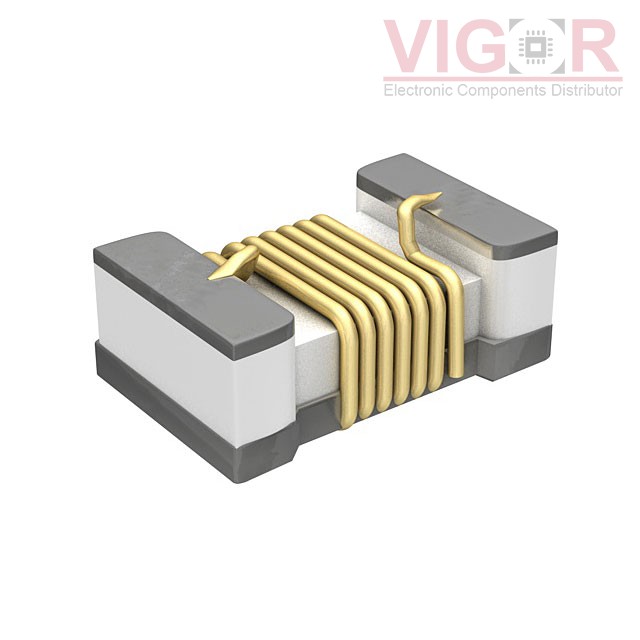

Image is for reference,
please contact us to get the real picture

Part No :: LQW04AN52NJ20D

Manufacturer: TOKO / Murata

Description: FIXED IND 52NH 120MA 2.28 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: LQW04AN52NJ20D PDF

Availability: 10000 pieces

Unit Price: ~~$0.44000~~

Current price of LQW04AN52NJ20D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW04AN52NJ20D Specifications

Type	Description
Series:	LQW04
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	52 nH
Tolerance:	±5%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2.28Ohm Max
Q @ Freq:	19 @ 250MHz
Frequency - Self Resonant:	3GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0302 (0804 Metric)
Supplier Device Package:	03015 (0804 Metric)
Size / Dimension:	0.031" L x 0.016" W (0.80mm x 0.40mm)
Height - Seated (Max):	0.018" (0.45mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

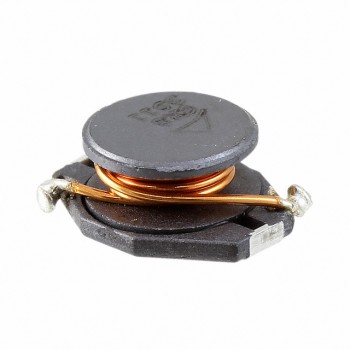

B82476B1223M100

FIXED IND 22UH 2.95A 50 MOHM SMD

HOT

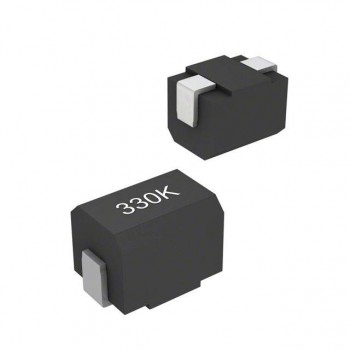

CM453232-R56ML

FIXED IND 560NH 520MA 360MOHM SM

HOT

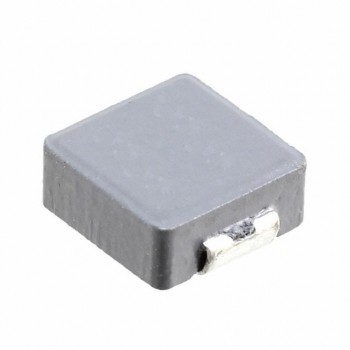

SRP7028A-2R5M
