SDR1030-220M

SDR1030-220M

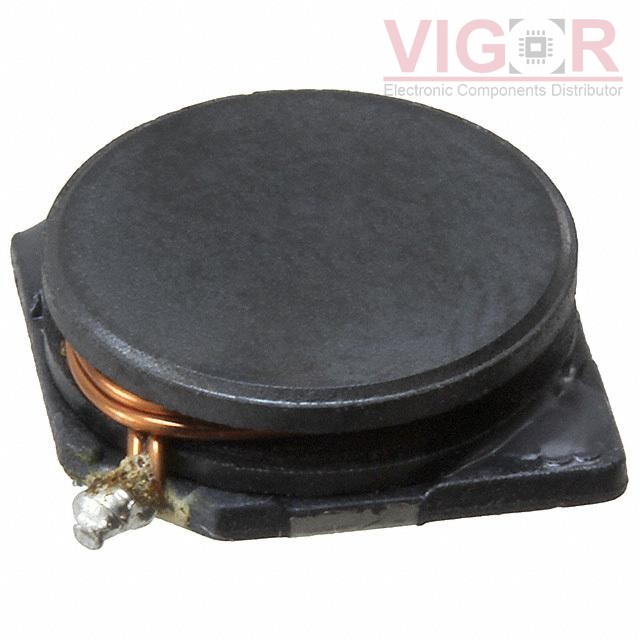

Image is for reference,
please contact us to get the real picture

Part No :

SDR1030-220M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 1.38A 145MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SDR1030-220M PDF
Availability
0 pieces
Unit Price
$0.41140

Current price of SDR1030-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1030-220M Specifications
Type Description
Series:SDR1030
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):1.38 A
Current - Saturation (Isat):1.6A
Shielding:Unshielded
DC Resistance (DCR):145mOhm Max
Q @ Freq:20 @ 2.52MHz
Frequency - Self Resonant:22.3MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):0.130" (3.30mm)
