PM32-101M-RC

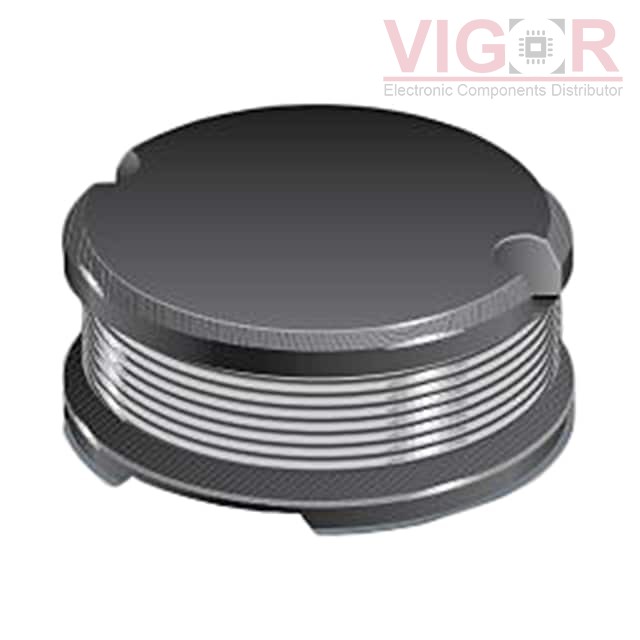

Image is for reference,
please contact us to get the real picture

Part No :: PM32-101M-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 100UH 260MA 2.85OHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: PM32-101M-RC PDF

Availability: 0 pieces

Unit Price: ~~$0.20000~~

Current price of PM32-101M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM32-101M-RC Specifications

Type	Description
Series:	PM32
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	100 µH
Tolerance:	±20%
Current Rating (Amps):	260 mA
Current - Saturation (Isat):	280mA
Shielding:	Unshielded
DC Resistance (DCR):	2.85Ohm Max
Q @ Freq:	40 @ 796kHz
Frequency - Self Resonant:	10MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.110" W (3.00mm x 2.80mm)
Height - Seated (Max):	0.110" (2.80mm)
