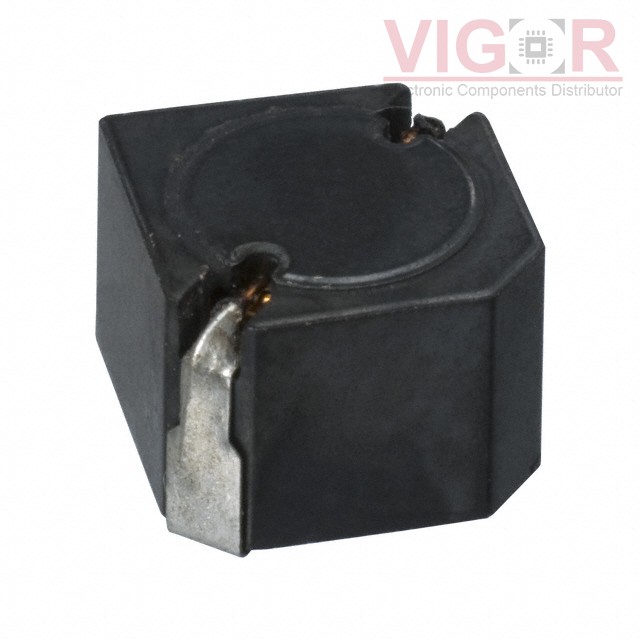

ELL-8UV101M

ELL-8UV101M

Image is for reference,
please contact us to get the real picture

Part No :

ELL-8UV101M

Manufacturer
Panasonic
Description
FIXED IND 100UH 0.82MA 160 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
ELL-8UV101M PDF
Availability
714 pieces
Unit Price
$1.57000

Current price of ELL-8UV101M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-8UV101M Specifications
Type Description
Series:ELL-8UV
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:Ferrite
Inductance:100 µH
Tolerance:±20%
Current Rating (Amps):0.82 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):160Ohm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):0.256" (6.50mm)
