PG0936.681NL

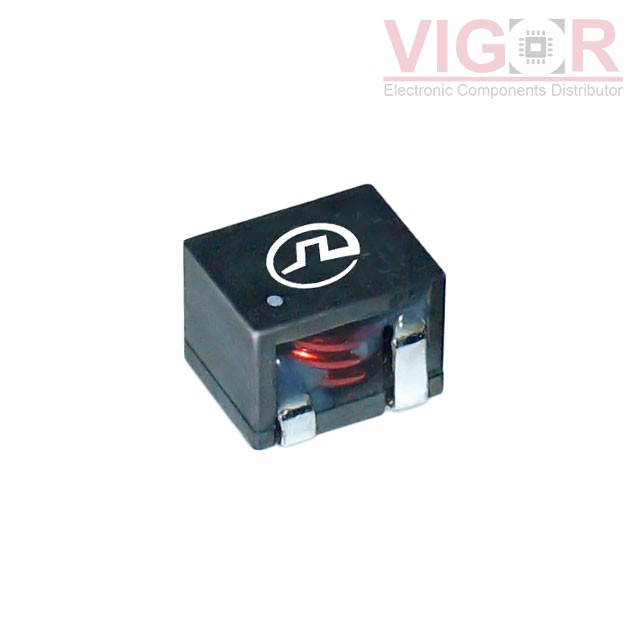

Image is for reference,
please contact us to get the real picture

Part No :: PG0936.681NL

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 680NH 40A 0.87 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: PG0936.681NL PDF

Availability: 0 pieces

Unit Price: ~~$3.24000~~

Current price of PG0936.681NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PG0936.681NL Specifications

Type	Description
Series:	PG0936NL
Package:	Tray
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	40 A
Current - Saturation (Isat):	62A
Shielding:	Unshielded
DC Resistance (DCR):	0.87mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 130°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.689" L x 0.657" W (17.50mm x 16.70mm)
Height - Seated (Max):	0.315" (8.00mm)

Please confirm the specifications of the products when ordering.
